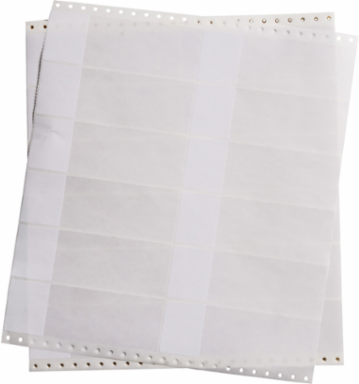

Brady DAT-9-292-2.5 DATAB Series Self-Laminating Vinyl Labels, 5.937" H x 2" W, Pack of 2500 Labels
Brady DAT-9-292-2.5 DATAB Series Self-Laminating Vinyl Labels, 5.937" H x 2" W, Pack of 2500 Labels
- MPN: DAT-9-292-2.5
- UPC: 662820289623
- PPN: BRD-DAT-9-292-2.5
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2630.90/ EA
Description
Self-Laminating Vinyl (B-292) is a matte vinyl with a clear overlaminate to protect graphics against oil, water, and mild solvents.
Features
- Vinyl labels feature clear "trailer" that wraps to protect printed text
- Flexible, self-extinguishing material conforms to most surfaces
- Operating temperature of -40°F to 150°F (-40°C to 65.5°C)
- RoHS Compliant;and UL Recognized when printed with Brady Series R2000, R5000, and R7300 ribbons
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- Clear/White
- Enables Industry Compliance
- ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized
- For Use with Printer
- Dot Matrix Printers
- National Stock Number (NSN)
- 7690012703770
- Print Technology
- Dot Matrix
- Printer Compatibility
- Dot Matrix
- Quantity per Row
- 6
- Shape
- Rectangle
- Total Qty per Pack
- 2500 Label(s) / Pack
- Trade Name
- DATAB®
- Brady Material Number
- B-292
- Label Properties
- Self Laminating Labels & Wraps
- Material Properties
- Flame-retardant; Self-laminating
- Resistance Properties
- Chemical-Resistant; Humidity-Resistant; Oil-Resistant; Water-Resisitant; Weather-Resistant
- Dimensions
- 5.937 in H x 2 in W
- Dimensions 2
- 5.937 in H x 2 in W
- Height (mm/cm/m)
- 150.80 mm
- Horizontal Repeat (mm)
- 53.34 mm
- Maximum Service Temperature °C
- 70 °C
- Maximum Wire Diameter (in/ft/yd)
- 1.41 in
- Minimum Service Temperature °C
- -40 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.71 in
- Printable Area Dimensions
- 1.5 in H x 2 in W
- Printable Area Height (in/ft/yd)
- 1.5 in
- Printable Area Width (in/ft/yd)
- 2 in
- Sign Size-General
- 5.937 in x 2 in
- Thickness (in/ft/yd)
- 0.004 in
- Vertical Repeat
- 6 in
- Web Width (in/ft/yd)
- 13.5 in
- Width (in/ft/yd)
- 2 in
- Wire Diameter Range
- 0.71 in to 1.41 in
Brand NameBrady®
Compatible Surface TypesGeneral
FinishMatte
Label/Media FormatRoll
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsWire & Cable
Quantity per Roll2500
Ribbon SeriesR2000; R5000
Suggested Ribbon SeriesR5000
Total Quantity2500
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialSelf-laminating Vinyl
Overlaminate IncludedOverlaminate Included
SAP B-NumberB-292
Dimensions (Metric)50.80 mm W x 150.80 mm H
Height (in/ft/yd)5.937 in
Horizontal Repeat2.1 in
Label/Tape Size (in/ft/yd)5.937 in H x 2 in W
Maximum Service Temperature °F158 °F
Maximum Wire Diameter (mm/cm/m)35.81 mm
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter (mm/cm/m)18.03 mm
Printable Area Dimensions (Metric)38.10 mm H x 50.80 mm W
Printable Area Height (mm/cm/m)38.10 mm
Printable Area Width (mm/cm/m)50.80 mm
Size - Width (mm)50.80 mm
Thickness (mm/cm/m)0.102 mm
Vertical Repeat (mm)152.40 mm
Web Width (mm/cm/m)342.90 mm
Width (mm/cm/m)50.8 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
