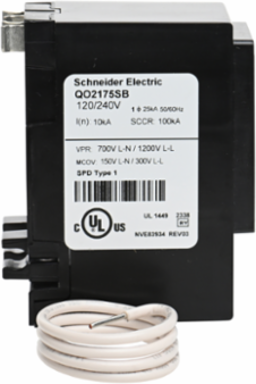

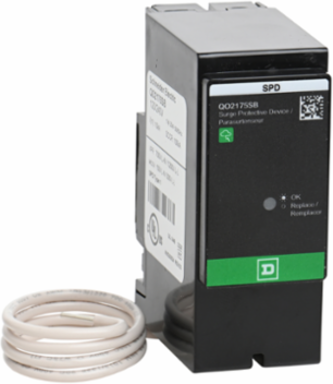

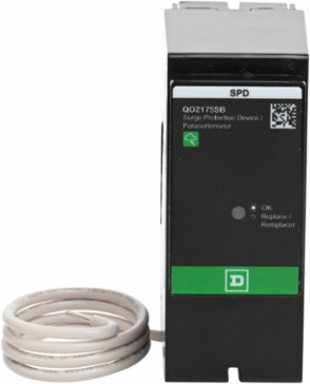

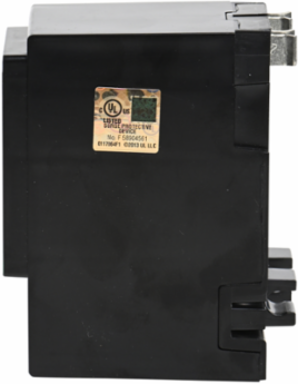

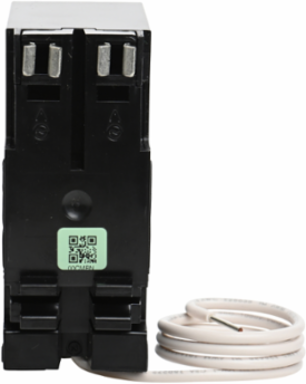

Square D QO2175SB Surge protection device, Surgebreaker, 25kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
- MPN: QO2175SB
- UPC: 785901210894
- PPN: SCH-QO2175SB
CAD
$146.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Square D™ Load Center Surge Protective Devices (SPDs) are plug-in units designed for fast and straightforward installation. The surge suppressors use two pole spaces in a Load center. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. This Surgebreaker is a secondary surge arrestor for QO load centers. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Securing up to 25kA surge current per phase. This surge protection device is UL Listed. It has a plug on design and requires two pole positions. The LED indicator indicates operational status. The QO Surgebreaker is CSA certified ans UL listed
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States, ZZ

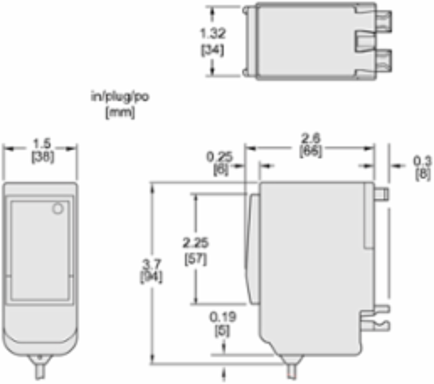

Depth2.6 in
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Range Of Product
- Surge Breaker, QO
- [Uc] Maximum Continuous Operating Voltage
- 150 V, 300 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.098485
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.3679
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Manufacturing Carbon Footprint
- 2.3679
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2002007EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Local Signalling
- 1 LED green normal operation
- Phase
- 1 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- surge protection device
- Returnability
- Yes
- Surge Energy Rating
- 900 J
- Total Lifecycle Carbon Footprint
- 250 kg CO2 eq.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years against direct or indirect effects of lightning or against transient overvoltages electrical equipements connected to electrical networks with a rated operational voltage up to 120/240 Vac& 10-Comply with UL1449 standards& 10-Complies with requirements of NEC® Article 285,CSA 233.1-87,and CSA C22.2 No.8-M1986 as appropriate
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 357.408
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- Height Nominal
- 3.7 in
- Certificate Agency
- cULus
- Short-circuit Protection
- 100 kA
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Total Life Cycle
- 21371
- Air Pollution (M3) Distribution [A4]
- 1.427
- Air Pollution (M3) End Of Life [C1-c4]
- 2.7314
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
- 22.951
- Global Warming (Kg.Equivalent.Co2) Total Life Cycle
- 249.97
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 247.47
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 2.1923
- Net Use Of Fresh Water (M3) Total Life Cycle
- 0.5188
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 1.5936
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
- 3168.6
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 3131.4
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 3369.4
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 3331.5
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 0.6769
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 3.574
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 3165.1
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 3131.4
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 199.85
- Water Pollution (M3) Total Life Cycle
- 12430
- Water Pollution (M3) Distribution [A4]
- 5.5165
- Water Pollution (M3) End Of Life [C1-c4]
- 4.8535
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Response Time< 50 ns, < 50 ns
Carbon Footprint Of The Distribution Phase [A4]0.033546, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0025438, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]247 kg CO2 eq., 247.47
Local Publishable Date2026-03-26
Stocking FlagN
Device TypeSurge Protection and Power Conditioning - Surge Protection Devices
TraceabilityNo
Use Carbon Footprint247.47
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Energy Efficiency OptimizedFalse
Nominal Discharge Current10 kA
Power Consumption In W500 mW
Product Destinationload center QO
Protection Typethermal fuse
Software VersionEIME v5.8.1
Sustainable PackagingYes
Wiring Configuration3-wire
Pep Verification Date2020-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: MEXICO
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Recyclability Potential, In %39
Width Nominal1.5 in
[Ue] Rated Operational Voltage120/240 V AC
Carbon Footprint (Kg Co2 Eq, Total Life Cycle)249.97
Package Weight(Lbs)172.365 g
Warranty (In Months)18
Air Pollution (M3) Manufacturing [A1-a3]351.32
Air Pollution (M3) Operational Energy Use [B6]21015
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle3036.7
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]3013
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]2.3679
Hazardous Waste Disposed Of (Kg) Total Life Cycle9.1942
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]6.6164
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle39.434
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]37.838
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]36.349
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]0.3768
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]37.026
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle200.76
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]200.08
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]3.574
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]32.775
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]0.3768
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]200.08
Water Pollution (M3) Manufacturing [A1-a3]219.72
Water Pollution (M3) Operational Energy Use [B6]12200
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2002007EN
- Nema Degree Of Protection
- NEMA 2
- Packaging Without Single Use Plastic
- Yes
- Pep Verification Date
- 2020-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Operation-20-65 °C, -20-65 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint249.97
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Surge Breaker, QO
- Product Or Component Type
- surge protection device
Phase1 phase
Surge Protection And Filtering Attributes
- Surge Current
- 25 kA
Surge Energy Rating900 J
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 700 V L-N, 1500 V L-L
