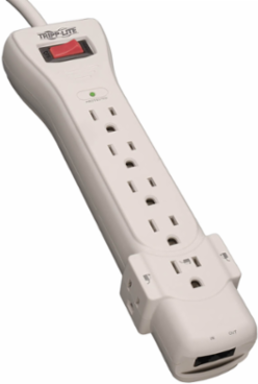

Tripp Lite SUPER6TEL 7-Outlet Surge Protector with 6-ft Cord, 1080 Joules, RJ11 Protection
Tripp Lite SUPER6TEL 7-Outlet Surge Protector with 6-ft Cord, 1080 Joules, RJ11 Protection
- MPN: SUPER6TEL
- UPC: 037332095428
- PPN: TRP-SUPER6TEL
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$53.87/ EA
Features
- 7 outlets / 6-ft. cord
- 1080 joule rating
- Modem/fax surge protection
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $50,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 1080
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- UL1449 Let Through Rating
- 400V
- Automatic Shut-Off
- No
AC Suppression Response Time< 1 ns
Clamping Voltage (RMS)150
EMI / RFI FilteringUp to 20 dB
Certifications
- UL1449 3rd Edition (AC Suppression)
- UL1449 3rd EDITION
- UL497A (Communications)
- UL497A
- Canada
- cUL
- Approvals
- Exceeds IEEE 587 category A&B specifications
UL1363 (Power Tap)UL1363
FCC Part 68 (Communications)FCC Part 68
Industry Canada (Communications)Industry Canada
Dataline Surge Suppression
- Telephone/DSL Protection
- Yes
- Cable (Coax) Protection
- No
Telephone/DSL Protection Details1 line
Network (Ethernet) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Light Gray
- Integrated Keyhole Mounting Slots
- Yes
- Material of Construction
- Plastic
- Receptacle Color
- Light gray
- Shipping Weight (lbs.)
- 1.50
- Unit Weight (lbs.)
- 1.39
ColorLight Gray
Housing ColorLight Gray
Keyhole Slot Mounting Measurement (Center to Center)Distance between slots = 78mm; Distance between slot height = 24mm
Outlets Measurement (Center to Center)Between Standard Outlets = 29mm; Between Transformer Outlets = 48mm
Shipping Dimensions (hwd / in.)12.90 x 2.30 x 6.00
Unit Dimensions (hwd / in.)1.54 x 2.72 x 10.3
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
- Diagnostic LED Details
- Built-in LED confirms suppressor "protection present" (green) status
SwitchesTwo position on/off power switch
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Input Cord Gauge Type
- 14 gauge; SJT
- Maximum Surge Amps
- 72000
- Input Cord Length (ft.)
- 6
- Integrated Cord Clip
- No
Recommended Electrical Service120V (110-125V)
Voltage Compatibility (VAC)120

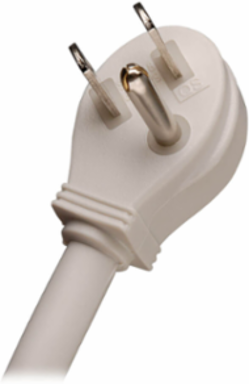

Input Plug TypeNEMA 5-15P
Right-Angle PlugYes
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (7) 5-15R
- Transformer Accommodation
- (4) Yes
- Right-Angle Outlets
- No
Output (Watts)1800
Circuit Breaker (amps)15
Outlet OrientationSingle row of 5, plus 2 side mounted outlets
Overview
- UPC Code
- 037332095428
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$50,000 Ultimate Lifetime Insurance
