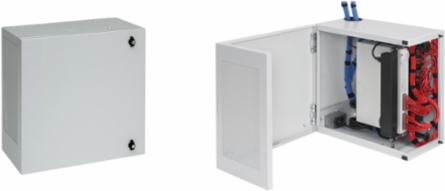

nVent Hoffman DBL242412G L-Box Type 1 Cabinet 24 Inch x 24 Inch x 12 Inch Steel, IP30, NEMA 1
- MPN: DBL242412G
- UPC: 783510143732
- PPN: HOF-DBL242412G
- UNSPSC: 43223306
CAD
$1243.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
L-Box cabinets house 19in network equipment vertically in locations where low profiles are necessary. This L-Box Type 1, DBL242412G item measures 24.00x24.00x12.00 inches with a material of Steel colored Lt Gray.
Features
- Spring-loaded, self-retained hinge pins allow door removal
- 120-degree door opening for maximum eqiupment access
- Quarter-turn latches with key lock
- One set of fixed rack angles is included on 24- and 36-inch (610- and 914-mm) tall models and two on 48-inch (1219-mm) tall models
- Rack angles on 36-inch (914-mm) models can be positioned either at the top or the bottom of the cabinet
- 36- and 48-inch (914- and 1219-mm) tall models have space for patch panel or shelf brackets
- Knockouts for 4-inch (102-mm) fan on top and bottom of cabinet
- Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of cabinet & two 3-inch cable entry knockouts on back
- Multiple cable tie-down points on back of cabinet
- Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy cabinet mounting
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 1
- Color Code
- RAL 7035
- Rack Units
- 6
- Weight
- 60
- Width
- 24 in
- Material
- Steel
- Color
- LtGray
Height (H)610
Depth (D)313
Product FamilyL-Box
Thickness (T)1.9
IP RatingIP30
Height24 in
Depth12.34 in
FinishSteel/LtGray
NEMA Rating1 Indoor, electrical protection
