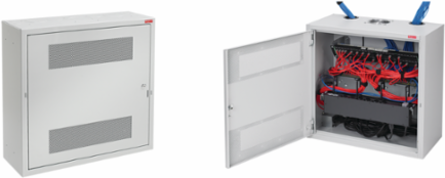

Nvent Hoffman DBS242412G D-Box Type 1 Cabinet 24 Inch x 24 Inch x 12 Inch Steel Lt Gray
Nvent Hoffman DBS242412G D-Box Type 1 Cabinet 24 Inch x 24 Inch x 12 Inch Steel Lt Gray
- MPN: DBS242412G
- UPC: 783510143664
- PPN: HOF-DBS242412G
- UNSPSC: 43223306
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1129.69/ EA
Description
D-Box cabinets house 19-inch network equipment in public locations where low profiles are necessary. This D-Box Type 1, DBS242412G item measures 24.00x24.00x12.00 inches with a material of Steel colored Lt Gray.
Features
- Spring-loaded, self-retained hinge pins allow door removal
- Reversible door fits flush to body with no exposed corners
- Knockouts for 4-inch fan on top and bottom of enclosure
- Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of enclosure; two 3-inch cable entry knockouts on back
- 120-degree door opening for maximum equipment access
- Multiple cable tie-down points on back of enclosure
- Quarter-turn latch with key lock
- Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy enclosure mounting
- Bosses provided for mounting accessories such as cable spools
- Patch panel 4U mounting angles rotate down for access
- Flange around door opening protects interior
- Bonding provision on door
- Ground stud on body
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 610
- Protection Rating
- NEMA Type 1
- Color Code
- RAL 7035
- Door Thickness
- 1.9
- IP Rating
- IP30
- Height
- 24 in
- Depth
- 12.34 in
- Finish
- Steel/LtGray
- NEMA Rating
- 1 Indoor, electrical protection
Height (H)610
Depth (D)313
Product FamilyD-Box
Body Thickness1.52
Rack Units6
Weight55
Width24 in
MaterialSteel
ColorLtGray
