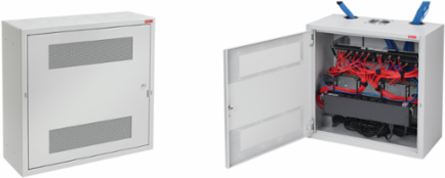

nVent Hoffman DBS362412G D-Box Type 1 Cabinet 36 Inch x 24 Inch x 12 Inch, IP30, Steel, Lt Gray

D-Box Type 1 Cabinet 36 Inch x 24 Inch x 12 Inch, IP30, Steel, Lt Gray
  • MPN: DBS362412G
  • UPC: 783510143688
  • PPN: HOF-DBS362412G
  • UNSPSC: 43223306

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1321.38/ EA

Description

D-Box cabinets house 19-inch network equipment in public locations where low profiles are necessary. This D-Box Type 1, DBS362412G item measures 36.00x24.00x12.00 inches with a material of Steel colored Lt Gray.

Features

  • Spring-loaded, self-retained hinge pins allow door removal
  • Reversible door fits flush to body with no exposed corners
  • Knockouts for 4-inch fan on top and bottom of enclosure
  • Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of enclosure; two 3-inch cable entry knockouts on back
  • 120-degree door opening for maximum equipment access
  • Multiple cable tie-down points on back of enclosure
  • Quarter-turn latch with key lock
  • Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy enclosure mounting
  • Bosses provided for mounting accessories such as cable spools
  • Patch panel 4U mounting angles rotate down for access
  • Flange around door opening protects interior
  • Bonding provision on door
  • Ground stud on body

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
610
Protection Rating
NEMA Type 1
Color Code
RAL 7035
Door Thickness
1.9
IP Rating
IP30
Height
36 in
Depth
12.34 in
Finish
Steel/LtGray
NEMA Rating
1 Indoor, electrical protection
Height (H)914
Depth (D)313
Product FamilyD-Box
Body Thickness1.52
Rack Units6
Weight73
Width24 in
MaterialSteel
ColorLtGray
