Fluke 80i 110s Fluke 80i-110s AC/DC Current Clamp
- MPN: 80i 110s
- UPC: 095969040549
- PPN: FLU-80I-110S
CAD
$1702.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

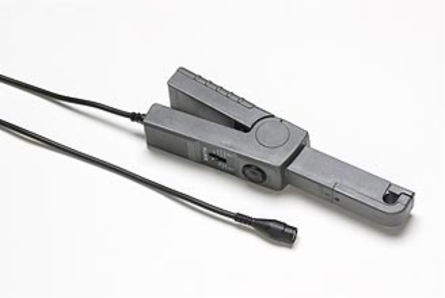

Fluke 80i-110s AC/DC Current Clamp
Specifications
Key Specifications
| Continuous current range | 0.1 A - 10 A AC/DC |
|---|---|
| Zero error adjustment | Yes |
| Basic accuracy | 80 to 100 A ±15% of reading |
| Output level(s) | 100 A range: 10 mV/A |
| Basic accuracy | 100 mV/A setting: 50 mA to 10 A ±3% of reading +50 mA |
| Maximum non-destructive current | 140 A - 2 kHz |
| Nominal current range | 10 A, AC/DC |
| Basic accuracy | 40 A to 80 A ±12% of reading +50 mA |
|---|---|
| Continuous current range | 1 A - 100 A AC/DC |
| Lowest measurable current | 0.1 A |
| Output level(s) | 10 A range: 100 mV/A |
| Basic accuracy | 10 mV/A setting: 50 mA to 40 A ±4% of reading +50 mA |
| Useable frequency | DC - 100 kHz |
| Nominal current range | 100 A, AC/DC |
Mechanical and General Specifications
| Battery life | 9 V, 55 h |
|---|---|
| BNC adapter | Yes |
| Warranty | 1 year |
| Output cable length | 1.6 m |
|---|---|
| Maximum conductor diameter | 11.8 mm |
Safety Specifications
| Safety | CAT III, 300 V |
|---|---|
| Maximum voltage | 600 V |
| Safety | CAT II, 600 V |
|---|
