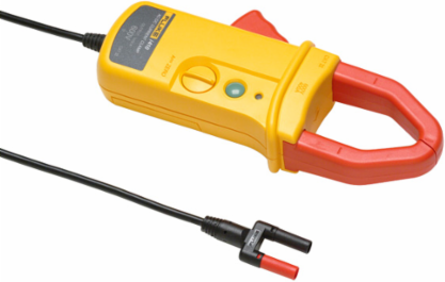

Fluke I410 Fluke i410 AC/DC Current Clamp
- MPN: I410
- UPC: 095969048194
- PPN: FLU-I410
CAD
$484.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Fluke i410 AC/DC Current Clamp expands the functionality of digital multimeters and measures up to 400 amps for both AC and DC current. Buy Online Now.
Features
- Battery-powered Hall-effect probe measures 1A to 400 A
- 1mV/Amp output guarantees easy reading on your meter
- Take accurate current readings without breaking the circuit
- Maximum conductor Ø 32 mm
- CAT III 600 V safety rating

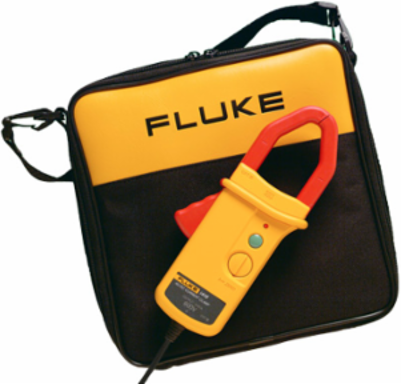

- Also available with softcase for DMM and clamp (i410 kit)
- One year warranty
Specifications
Key Specifications
| Maxium non-destructive current | 400 A |
|---|---|
| Basic accuracy | 3.5% + 0.5 A (% reading + floorspec) |
| Useable frequency | DC - 3 kHz |
| Nominal current range | 400 A, AC/DC |
| Output level(s) | 1 mV/A |
| Continuous current range | 1 A - 400 A AC/DC |
|---|---|
| Lowest measureable current | 0.5 A |
| Measurement type | Hall sensor |
| Zerro error adjustmemt | Yes |
Mechanical and General Specifications
| Shrouded banana plugs | Yes |
|---|---|
| Maximum conductor diameter | 30 mm 2 x 25 mm |
| Output cable length | 1.6 m |
| Battery life | 9 V, 60 h |
|---|---|
| Warranty | 1 year |
Safety Specifications
| Safety | CAT III, 600 V |
|---|
| Maximum voltage | 600 V |
|---|
