Greenlee DDPM-40/K03 Double Vision Wireless Phasing Meter 5V-43kV, Two LED Displays, 100 ft Range

MPN: DDPM-40/K03
UPC: 783310042907
PPN: GRN-DDPM-40/K03
UNSPSC: 41113637

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Double Vision Wireless Phasing Meter 5V-43kV, Two LED Displays, 100 ft Range

Features

Measures voltage from 5V to 43kV line-to-line
Can be used individually as voltmeters or together for phasing operations up to 100 ft. (30m) apart
Clear indication of phase angle
Two LED displays are automatically synchronized during phasing operations

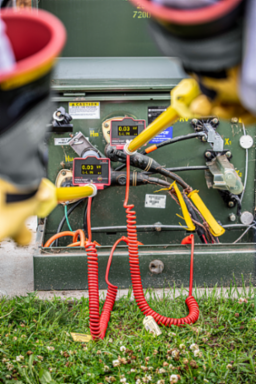

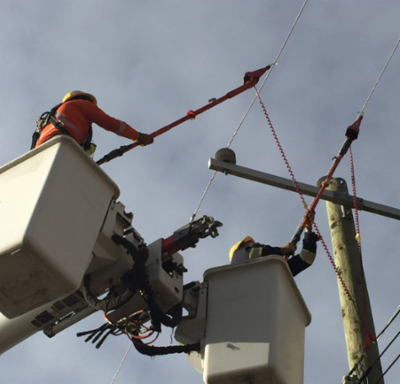

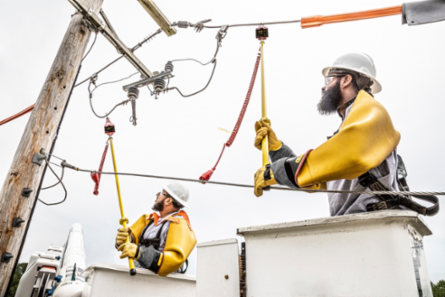

Versatile for overhead and underground applications
Capacitive Test Point and Peak Hold modes

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Type	Voltmeter & Phasing set
Voltage Rating	5V - 43kV line-to-line, 5V - 25kV line-to-ground
Display	Two LED displays with 0.7" numeral height. Displays 3 digits
Dimensions	14" L x 4.1" H x 4.6" W (36 cm x 10 cm x 12 cm) without probes
Phase Indication	Phase Angle

Sub Brand	HDE
Model	DDPM-40
Accuracy	Within 1% of reading +/- 3 counts (line-to-ground & line-to-line measurements)
Operating Temperature	-20°F to +120°F (-29°C to +49°C)
Frequency Rating	25 - 1000Hz AC/DC

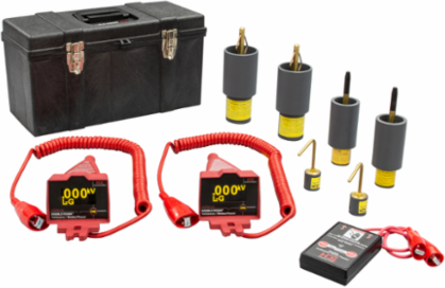

Included	DDPM-40, (2) 025-OLPS-5 Overhead Brass Hook Probes (2), ASP-15/25 15kV/25kV UG Bushing Probe (2), ASP-35U 35kV UG Bushing Probe (2), PT-5000B Proof Tester, CS-DDVM Case
