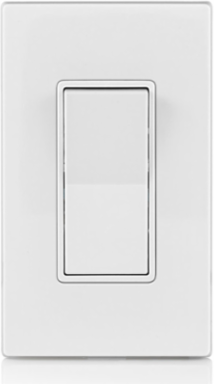

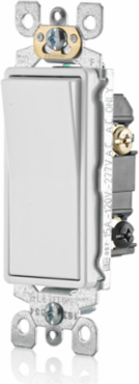

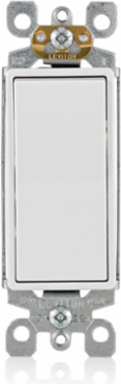

Leviton 5603-P2W 15 Amp Decora 3-Way Quiet Switch, 120/277 Volt, Self-Grounding, White
- MPN: 5603-P2W
- UPC: 078477339640
- PPN: LEV-5603-P2W
CAD
$3.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 120/277 Volt, Decora Rocker 3-Way AC Quiet Switch, Residential Grade, Self-grounding - White
Features
- Switch frame shields against dust and fits in wallplate to prevent rocker binding
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Sturdy construction for long service life
- Full-rated current capacity with tungsten, fluorescent or resistive loads
- Self-grounding when installed in a properly grounded metal box
- Complements every décor
- Limited 2-year warranty
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- CONVENIENT - Quiet 3-way switch controls loads from two locations
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Quick wire push-in and side wiring for easy installation
- COMPATIBLE - For use with Leviton Decora wallplates Now available in bulk pack - white color only
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Horsepower Rating
- 1/2 HP at 120 V, 2 HP at 240-277 V, Max 12 Amp
- Switch Type
- 3-Way Rocker
- Terminal Type
- Quickwire Push-In & Side Wiring
- Material
- Thermoplastic nylon
- Actuator Material
- Thermoplastic
- Standards and Certifications
- UL/CSA
- Country of Origin
- United States
Voltage120/277 VAC
Pole Count3
Torque Range14-18 in-lbs
GroundingGrounding Strap with Clip
Strap MaterialSteel
RoHS CompliantFalse
ColorWhite
Warranty2 Year Limited
