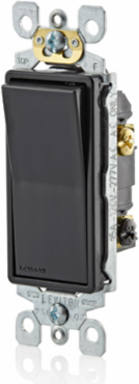

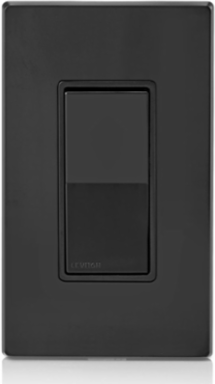

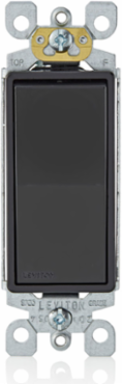

Leviton 5603-P2E 15 Amp Decora 3-Way Rocker Switch, 120/277 Volt, Self-Grounding, Black
- MPN: 5603-P2E
- UPC: 078477339787
- PPN: LEV-5603-P2E
CAD
$3.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 120/277 Volt, Decora Rocker 3-Way AC Quiet Switch, Residential Grade, Self-grounding - Black
Features
- Switch frame shields against dust and fits in wallplate to prevent rocker binding
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Sturdy construction for long service life
- Full-rated current capacity with tungsten, fluorescent or resistive loads
- Self-grounding when installed in a properly grounded metal box
- Complements every décor
- Limited 2-year warranty
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- CONVENIENT - Quiet 3-way switch controls loads from two locations
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Quick wire push-in and side wiring for easy installation
- COMPATIBLE - For use with Leviton Decora wallplates
Documentation & Downloads
Specifications
Additional
- Voltage
- 120/277 VAC
- HP Rating
- 1/2HP-120V 2HP-240V-277V Max 12 Amp
- Switch Function
- 3-Way
- Torque Range
- 14–18 in.-lbs
- Terminal Accommodation
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Strap Material
- Steel
- Standards and Certifications
- UL, CSA
- Color
- Black
- Warranty
- 2-Year Limited
Amperage15 A
TypeRocker Switch
Pole3
TerminationQuickwire Push-In & Side
GroundingGrounding Strap with Clip
MaterialThermoplastic (Body and Actuator)
RoHS CompliantFalse
Country of OriginUnited States
