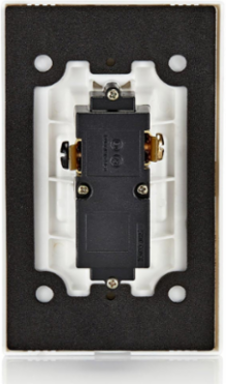

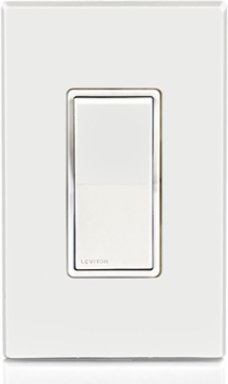

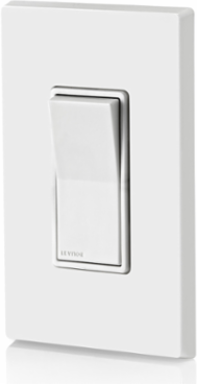

Leviton W5601-2W Decora Weather-Resistant Single-Pole Switch 15 Amp 120/277 Volt, Gray
- MPN: W5601-2W
- UPC: 078477223437
- PPN: LEV-W5601-2W
CAD
$33.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Amp, 120/277 Volt, Decora Weather-Resistant Single-Pole Switch, Residential Grade – White
Features
- All-in-one weather-resistant switch solution, no outdoor cover required

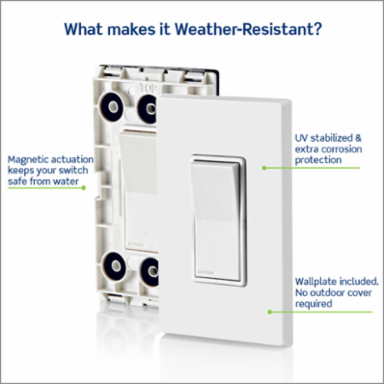

- Patent-pending actuation done with magnets, allowing the subplate/switch to be impervious to water intrusion
- Designed for wet and damp locations
- UV stabilized thermoplastic construction
- Rocker switch for smooth operation

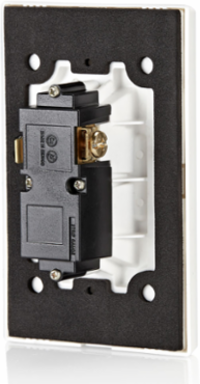

- Side and back wire for easy installation
- NEMA 3R Rated to meet exterior Code
- Ideal for residential and commercial outdoor kitchens and bars, outdoor lighting, patio, pool and spa areas, sheds, gazebos, cabanas, outdoor ceiling fans, and fountains.
- 2-Year Limited Warranty
- ATTRACTIVE – All-in-one weather-resistant switch solution, no outdoor cover required
- WEATHER-RESISTANT – Ideal for use for in wet and damp locations
- CONVENIENT – Controls light(s) from one location
- EASY TO INSTALL – Side and back wire for easy installation
- COMPLIANT – NEMA 3R Rated to meet exterior standard
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Material Specifications
- Actuator Material
- Thermoplastic
- Strap Material
- Steel
Body MaterialThermoplastic
Mechanical Specifications
- Terminal Accom.
- Back Wire #10-#14 AWG; Side Wire #12-#14 AWG
- Torque Range
- 14 – 18 in.-lbs
TerminationSide Wire, Back Wire
TypeWeather-Resistant Rocker Switch
Product Features
- Amperage
- 15 A
- Device Type
- Rocker Switch
- Grade
- Residential
- Max. Amperage
- 12 Amp
- Voltage
- 120/277 VAC
ColorGray
FeatureWeather-Resistant
HP Rating1/2HP-120V 2HP-240V-277V
Pole1
Warranty
- Warranty
- 2-Year Limited
Standards & Certifications
- NOM
- NOM
UL StandardcULus
