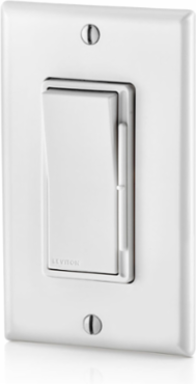

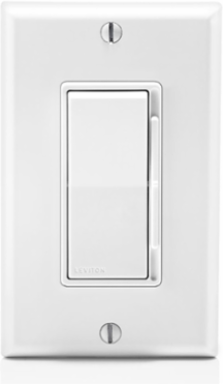

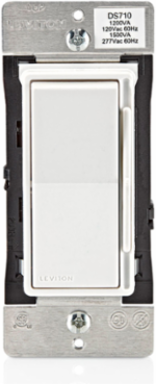

Leviton DS710-10Z Decora Slide Dimmer Switch 0-10V for LED & Fluorescent, 1200VA/277VAC
- MPN: DS710-10Z
- UPC: 078477692370
- PPN: LEV-DS710-10Z
CAD
$126.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Decora Slide Preset Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies, suitable for use with Class 1 or Class 2 wiring, 10A LED/Electronic Ballast 120VAC, 1200VA @ 120VAC, and 1500VA @ 277VAC Fluorescent Ballast, 60Hz, 50mAmps maximum sinking current, single pole or 3-way control when used with 3-way switch - White, Ivory & Light Almond
Features
- Use only with appropriate 0-10V dimmable power supplies/drivers
- Aesthetically pleasing design with rocker switch and slender dimmer control slide bar
- Dual voltage 120V/277V; 50mAmps maximum sink current
- Integrated linear full-range slide control for easy, precise operation

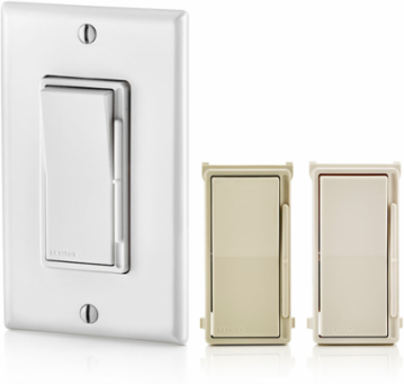

- Single pole or 3-way operation (when using 3-way switch); packaged with White, Ivory, and Light Almond color change kits
- Additional color change kits available in Black, Brown, Red and Gray
- Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations with other Decora products
- The slide bar location preserves the selected brightness level when the dimmer is switched OFF
- No fins for multi-gang installation

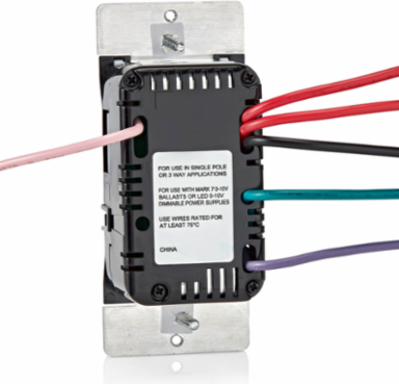

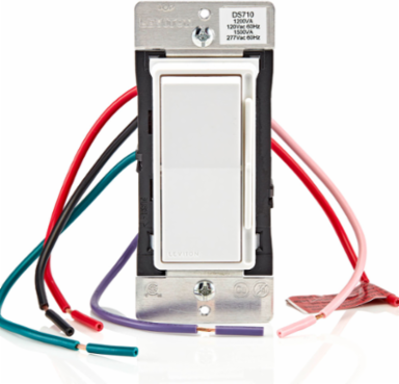

- Wired using leads, a Neutral wire is not required for operation
- Built-in radio/TV interference filter
- INNOVATIVE – Designed for use with 0-10V power supplies
- ADVANCED – No power pack required for switching
- EXCEPTIONAL – Superior quality and dimming performance
- FLEXIBLE – Can be used in a single-pole or 3-way installation (with a 3-way switch, sold separately)
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Action
- Rocker Switch for ON/OFF, slide bar for lighting level control
- Color
- White, Ivory, Light Almond
- Load Rating
- 1200VA-120VAC, 10A LED 120VAC; 1500VA-277VAC
- Ordering Notes
- Included White, Ivory and Light Almond Color Kit
- Protection
- Radio/TV Filter
- Style Name
- Decora
- Type
- Dimmer
- Wallplate
- Order Separately
Available ColorsIvry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
Frequency60 Hz
Load TypeElectronic 0-10VDC Fluorescent
PresetSlide bar preserves desired lighting level
Standards and CertificationscCSAus, NOM
Switch TypeSingle-Pole & 3-Way
Voltage120 VAC
Warranty5-Year Limited
