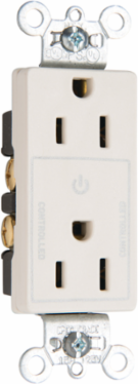

Pass & Seymour 26252CHGRY 15A Half-Controlled Duplex Receptacle, Gray, 0.78 Inch Depth, 2.635 Inch Height
- MPN: 26252CHGRY
- UPC: 785007032680
- PPN: P-S-26252CHGRY
CAD
$13.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15A Half-Controlled Duplex Receptacle, Gray, 0.78 Inch Depth, 2.635 Inch Height
Features
- NEMA approved controlled receptacle marking pad printed on the face of receptacle for superior abrasion resistance.
- CH versions feature a factory broken split circuit tab allowing you to control half of the receptacle.
- Can be used to control loads using the Wattstopper DLM system and other building control systems.
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Heavy-duty compact design for easier installation and long lasting performance.
- Impact-resistant nylon face.
- Terminal compartments isolated from each other for positive conductor containment.
- Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
- All devices fit standard #26 opening wall plate.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Color
- Gray
- Width
- 1.322 in
- Amperage
- 15.0 A
- Standard
- FEDSPEC
- Number of Wires
- 4.0
- Wire Size
- 14 - 10 AWG
- Features
- Half-Controlled
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
Height2.635 in
Product LinePass & Seymour
Country of OriginMexico
Voltage125.0 V
FeaturesPlugload
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
NEMA Configuration Code5-15R
Wire Connection TypeScrew Terminals
