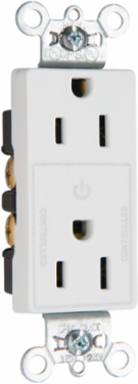

Pass & Seymour 26252CHW Decorator 15A Half-Controlled Duplex Receptacle, White, 2.635 Inch Height, 1.322 Inch Width
- MPN: 26252CHW
- UPC: 785007032642
- PPN: P-S-26252CHW
CAD
$13.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Decorator 15A Half-Controlled Duplex Receptacle, White, 2.635 Inch Height, 1.322 Inch Width
Features
- NEMA approved controlled receptacle marking pad printed on the face of receptacle for superior abrasion resistance.
- CH versions feature a factory broken split circuit tab allowing you to control half of the receptacle.
- Can be used to control loads using the Wattstopper DLM system and other building control systems.
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Heavy-duty compact design for easier installation and long lasting performance.
- Impact-resistant nylon face.
- Terminal compartments isolated from each other for positive conductor containment.
- Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
- All devices fit standard #26 opening wall plate.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 0.78 in |
|---|---|
| Color | White |
| Width | 1.322 in |
| Country of Origin | Mexico |
| Standard | FEDSPEC |
| Number of Wires | 4.0 |
| Wire Size | 14 - 10 AWG |
| Features | Half-Controlled |
| Outlet Type | Straight Blade |
| Application Sector | Commercial |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Height | 2.635 in |
|---|---|
| Product Line | Pass & Seymour |
| Amperage | 15.0 A |
| Voltage | 125.0 V |
| Features | Plugload |
| Indoor/Outdoor | Indoor |
| Wall Plate Included | No |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| NEMA Configuration Code | 5-15R |
| Wire Connection Type | Screw Terminals |
