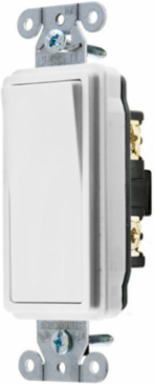

Hubbell Wiring Device-Kellems DS115W Decorator Switch, 15A 120/277V AC, Single Pole, Back and Side Wired, White
- MPN: DS115W
- UPC: 783585108315
- PPN: HBL-DS115W
- UNSPSC: 39122226
CAD
$7.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, White
Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.28 in x 1.43 in x 1.54 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Amperage Rating
- 15 A
- Number of Poles
- Single Pole
- Size
- 4.28 in x 1.43 in x 1.54 in
- Type
- Rocker/Decorator
- Weight
- 0.2 lb.
- Connectivity
- Back and Side Wired
- Number Of Poles
- Single Pole
- Wire Size
- #14 AWG to #10 AWG
- Description - Invoice
- SWITCH, DECO SER, SP, 15A 120/277V, WH
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A250
- Material
- Thermoplastic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.05 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.811 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 45.000 in
- Pallet Weight
- 729.000 lb.
- NAICS Code
- 3359315101
Current / Amperage Rating15 A
Height1.54 in
Length4.28 in
Temperature Rise - Max.30°C maximum at rated current
ColorWhite
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StandardUL Listed
Voltage Rating120-277 VAC
Width1.43 in
Dielectric StrengthWithstands 1500V AC minimum for 1 minute
StyleSingle Pole
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2101W;2101WA;HBL2101WA;OEM2111W
Current Rating15 A
SeriesGeneral Purpose
BOX SIZE3.400x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585108315
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585108314
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
