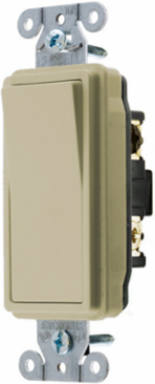

Hubbell Wiring Device-Kellems DS320I Illuminated Decora Switch, 20A, 120/277V, Three Way, Back and Side Wired
- MPN: DS320I
- UPC: 783585108391
- PPN: HBL-DS320I
- UNSPSC: 39122226
CAD
$67.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decorator Switch, Specification Grade, Three Way, 20A 120/277V AC, Back and Side Wired
Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Switch Type | Three Way |
| Temperature Rise | 30 C maximum at rated current |
| Overload Capacity | Minimum 4.8 times rated current for 100 cycles |
| Size | 3.91 in x 1.41 in x 1.01 in |
| Width | 1.41 in |
| Wire Size | #14 AWG to #10 AWG solid and stranded copper wire |
| Material | Thermoplastic |
| Terminal Screws | Brass |
| Ground Screw | Brass (Green) |
| Compliance | UL Listed, Prop 65 Compliant, EU RoHS |
| Country of Origin | CN |
| Voltage | 120-277 VAC |
|---|---|
| Wiring | Back and Side Wired |
| Operating Temperature | -40 C to 75 C continuous |
| Action | SPDT |
| Length | 3.91 in |
| Height | 1.01 in |
| Number of Poles | Single Pole |
| Contacts | Silver Alloy |
| Mounting Bridge | Nickel Plated Steel with Auto Ground Staple |
| Dielectric Voltage | 1500 V AC minimum for 1 minute |
| Color | Ivory |
