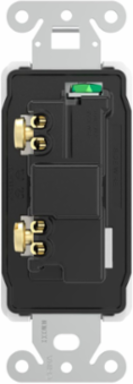

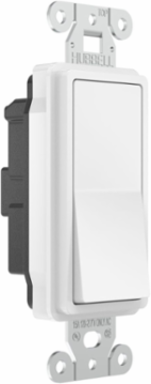

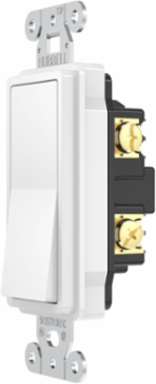

Hubbell Wiring Device-Kellems DS120W Decorator Switch, Single Pole, 20A 120-277V AC, Back & Side Wired
- MPN: DS120W
- UPC: 783585108377
- PPN: HBL-DS120W
- UNSPSC: 39122226
CAD
$16.71
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 20A 120/277V AC, Back and Side Wired, White
Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
Key Specifications
| General Literature Asset 2 Display Text | Load Control Application Guide |
|---|---|
| Country of Origin | China |
| Dimensions | 4.28 in x 1.43 in x 1.54 in |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Amperage Rating | 20 A |
| Number of Poles | Single Pole |
| Size | 4.28 in x 1.43 in x 1.54 in |
| Type | Rocker/Decorator |
| Weight | 0.2 lb. |
| General Literature Asset 1 Display Text | Healthcare Product Solutions |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Style | Single Pole |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | HBL2121WA |
| Current Rating | 20 A |
| Series | General Purpose |
| BOX SIZE | 4.900x18.200x10.400 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585108377 |
| Case Weight | 9.100 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 44.100 in |
| Pallet Weight | 828.000 lb. |
| NAICS Code | 3359315101 |
| General Literature Asset 3 Display Text | Emergency Preparedness for Healthcare |
|---|---|
| Current / Amperage Rating | 20 A |
| Height | 1.54 in |
| Length | 4.28 in |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Color | White |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Standard | UL Listed |
| Voltage Rating | 120-277 VAC |
| Width | 1.43 in |
| Connectivity | Back and Side Wired |
| Number Of Poles | Single Pole |
| Wire Size | #14 AWG to #10 AWG |
| Description - Invoice | SWITCH, DECO SER, SP, 20A 120/277V, WH |
| Harmonization Code | 8536509999 |
| MSDS Flag | No |
| Sub Class Code | A16A255 |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.05 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585108376 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
