Weidmuller 0518960091 DEK 6 FWZ 91-100
- MPN: 0518960091
- PPN: WDM-0518960091
CAD
$0.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

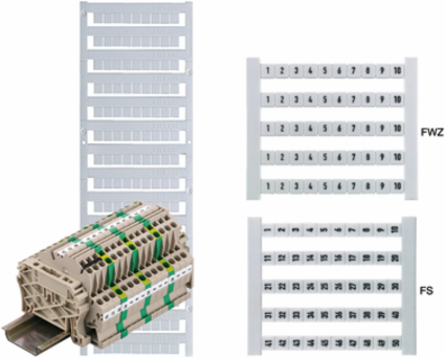

Dekafix, Terminal marker, 5 x 6 mm, Pitch in mm (P): 6.00 Weidmueller, white
Specifications
General Data
- Application/manufacturer
- Weidmueller
- Colour of printing
- black
- Material
- Polyamide 66
- Operating temperature range
- -40...100 °C
- Printed characters
- Numbers
- UL 94 flammability rating
- V-2
Colourwhite
HalogenNo
Material colour according to resistance code9
Orientation of printhorizontal
Printing methodMC Laser
Width6 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 6 mm
- Height
- 5 mm
- Net weight
- 0.06 g
Width (inches)0.236 inch
Height (inches)0.197 inch
Connector Markers
- Pitch in mm (P)
- 6 mm
Classifications
- ETIM 6.0
- EC000761
- eClass 9.0
- 27-14-11-37
- eClass 10.0
- 27-14-11-37
ETIM 7.0EC000761
eClass 9.127-14-11-37
UNSPSC30-21-18-07
