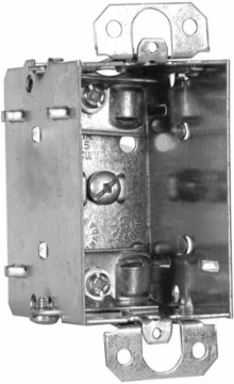

Hubbell H1104LUBAR Single Gang Device Box 2-1/2 Inch Deep 12.5 Cu. In. Steel with Raised Ground Screw
- MPN: H1104LUBAR
- UPC: 805035055359
- PPN: HBL-H1104LUBAR
CAD
$6.87
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Gang Device Box 2-1/2 Inch Deep 12.5 Cu. In. Steel with Raised Ground Screw
Features
- A a single-gang metallic box used for housing electrical devices (switches or receptacles) in "rough-in" installations. The "H" prefix signifies it belongs to the high-capacity family, offering more internal volume than standard utility boxes for easier wiring.
- This box features a 2-1/2 inch depth and a 14.5 cubic inch capacity. This is a significant upgrade over the shallower 1102 models, making it the ideal choice for housing bulky modern devices like GFCIs, dimmers, or smart switches that require extra room for wires and connectors.
- The "LU" designation identifies the Universal Cable Clamps (U-Clamps). These internal clamps are factory-installed and certified to secure both non-metallic sheathed cable (NMD90/Loomex) and armored cable (AC90/BX). This versatility allows you to use one box type across a project, regardless of the wiring method.
- The "BAR" indicates that the box comes with an integrated side-mount bracket. This bracket is designed to be nailed or screwed directly to the face or side of wood or metal studs. It ensures the box remains perfectly stable and square during the drywall installation process.
- Like much of the Iberville line, this box is gangable. By removing the side plates, you can join multiple H1104 boxes together to create a 2-gang, 3-gang, or larger enclosure. This is perfect for custom switch banks where you still need the 2-1/2" depth for wiring.
Documentation & Downloads
Specifications
Additional
- Number of Gangs
- 1-Gang
- Volume
- 12.5 cu in
- Raised Ground
- Yes
Depth2.5 in
MaterialSteel
