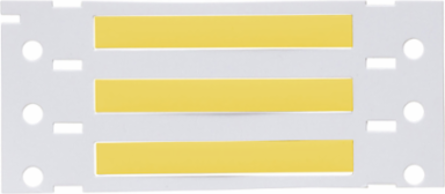

Brady DR-187-2-YL Diesel Resistant PermaSleeve Heat Shrink Wire and Cable Sleeves, 0.187" Dia x 2" W
- MPN: DR-187-2-YL
- UPC: 754473898410
- PPN: BRD-DR-187-2-YL
- UNSPSC: 55121612
CAD
$3302.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The B-7646 PermaSleeve material is diesel resistant and is engineered for thermal transfer printing.
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- BBP72
- Quantity per Roll
- 2500
- Recommended Ribbon
- R6600
- Shrink Ratio
- 3:1
- Total Qty per Pack
- 2500 Label(s) / Roll
- Trade Name
- PermaSleeve®
- Brady Material Number
- B-7646
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Heat-shrinkable
- SAP B-Number
- B-7646
- Diameter as Supplied (in/ft/yd)
- 0.187 in
- Dimensions
- 0.335 in H
- Dimensions 2
- 0.335 in H
- Height (mm/cm/m)
- 8.51 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 4.80 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.062 in
- Minimum Wire Gauge
- 10 AWG
- Recovered Diameter (mm/cm/m)
- 1.6 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 0.187 in Dia x 2 in W
- Sleeve Width (in/ft/yd)
- 2 in
- Thickness (in/ft/yd)
- 0.0205 in
- Vertical Repeat
- 0.75 in
- Wire Diameter Range
- 0.062 in to 0.15 in
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; CSA Approved; IEC 243; IEC 60684-2; ISO/R 1183; MIL-STD-202; NF Approved; SAE-AS-81531
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll2500
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP72
Quantity per Row1
Ribbon SeriesR6600
Suggested Ribbon SeriesR6600
Total Quantity2500
Adhesive (Y/N)No
Continuous & Die-Cut Materials SupportedDie Cut Sleeves
MaterialDiesel-resistant Heat-shrink Polyolefin Sleeve
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Diameter as Supplied (mm/cm/m)4.8 mm
Dimensions (Metric)50.80 mm W x 8.51 mm H
Height (in/ft/yd)0.335 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.15 in
Maximum Wire Gauge16 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)1.57 mm
Recovered Diameter (in/ft/yd)0.062 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)50.80 mm
Sleeve Size (mm/cm/m)4.8 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)50.8 mm
Thickness (mm/cm/m)0.521 mm
Vertical Repeat (mm)19.05 mm
Wire Gauge Range10 AWG to 16 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- DOT Regulated Product
- No = not regulated by DOT
- EU RoHS Compliant
- Yes
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
EU RoHS CompliancePass 2011/65/EU
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
