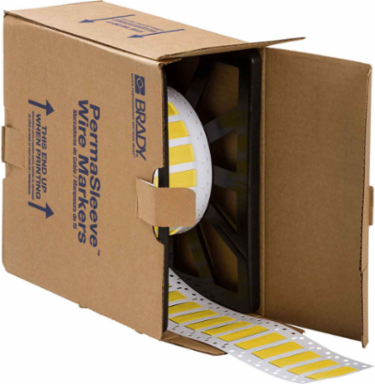

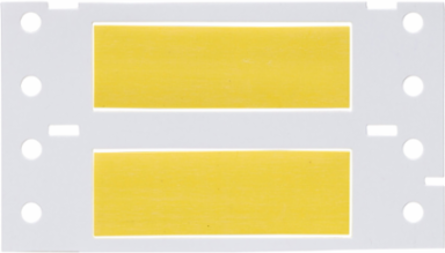

Brady DR-375-2-YL Diesel Resistant PermaSleeve Heat Shrink Wire and Cable Sleeves, 0.375" Dia x 2" W
- MPN: DR-375-2-YL
- UPC: 754473898434
- PPN: BRD-DR-375-2-YL
- UNSPSC: 55121612
CAD
$2321.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The B-7646 PermaSleeve material is diesel resistant and is engineered for thermal transfer printing.
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- BBP72
- Quantity per Roll
- 1000
- Recommended Ribbon
- R6600
- Shrink Ratio
- 3:1
- Total Qty per Pack
- 1000 Label(s) / Roll
- Trade Name
- PermaSleeve®
- Brady Material Number
- B-7646
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Heat-shrinkable
- SAP B-Number
- B-7646
- Diameter as Supplied (in/ft/yd)
- 0.375 in
- Dimensions
- 0.645 in H
- Dimensions 2
- 0.645 in H
- Height (mm/cm/m)
- 16.38 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 9.50 mm
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.125 in
- Minimum Wire Gauge
- 4 AWG
- Recovered Diameter (mm/cm/m)
- 3.2 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 0.375 in Dia x 2 in W
- Sleeve Width (in/ft/yd)
- 2 in
- Thickness (in/ft/yd)
- 0.0205 in
- Vertical Repeat
- 1 in
- Wire Diameter Range
- 0.125 in to 0.32 in
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; CSA Approved; IEC 243; IEC 60684-2; ISO/R 1183; MIL-STD-202; NF Approved; SAE-AS-81531
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll1000
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP72
Quantity per Row1
Ribbon SeriesR6600
Suggested Ribbon SeriesR6600
Total Quantity1000
Adhesive (Y/N)No
Continuous & Die-Cut Materials SupportedDie Cut Sleeves
MaterialDiesel-resistant Heat-shrink Polyolefin Sleeve
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Diameter as Supplied (mm/cm/m)9.5 mm
Dimensions (Metric)50.80 mm W x 16.38 mm H
Height (in/ft/yd)0.645 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.32 in
Maximum Wire Gauge8 AWG
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)3.18 mm
Recovered Diameter (in/ft/yd)0.125 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)50.80 mm
Sleeve Size (mm/cm/m)9.5 mm Dia x 50.8 mm W
Sleeve Width (mm/cm/m)50.8 mm
Thickness (mm/cm/m)0.521 mm
Vertical Repeat (mm)31.75 mm
Wire Gauge Range4 AWG to 8 AWG
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
