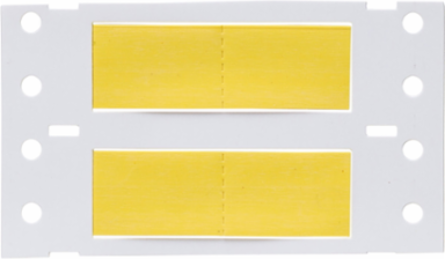

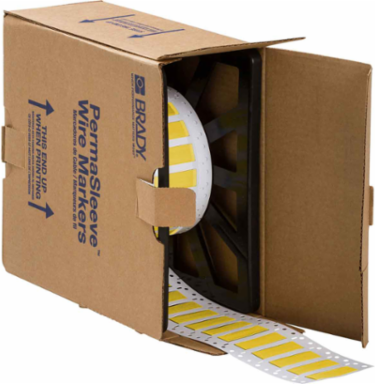

Brady DR-375-2-YL-2 Diesel Resistant PermaSleeve Heat Shrink Wire and Cable Sleeves, 0.375" Dia x 1" W
Brady DR-375-2-YL-2 Diesel Resistant PermaSleeve Heat Shrink Wire and Cable Sleeves, 0.375" Dia x 1" W
- MPN: DR-375-2-YL-2
- UPC: 662820528531
- PPN: BRD-DR-375-2-YL-2
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2321.89/ EA
Description
The B-7646 PermaSleeve material is diesel resistant and is engineered for thermal transfer printing.
Specifications
Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Primary Noun, Basic Function
- Sleeve
- Printable Sides
- Double-Side Printable
- Printer Compatibility
- BBP72
- Quantity per Roll
- 2000
- Recommended Ribbon
- R6600
- Shrink Ratio
- 3:1
- Suggested Ribbon Series
- R6600
- Total Quantity
- 2000
- Adhesive (Y/N)
- No
- Continuous & Die-Cut Materials Supported
- Die Cut Sleeves
- Material
- Diesel-resistant Heat-shrink Polyolefin Sleeve
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 9.5 mm
- Dimensions (Metric)
- 25.40 mm W x 16.38 mm H
- Height (in/ft/yd)
- 0.645 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.32 in
- Maximum Wire Gauge
- 8 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 3.18 mm
- Recovered Diameter (in/ft/yd)
- 0.125 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 25.40 mm
- Sleeve Size (mm/cm/m)
- 9.5 mm Dia x 25.4 mm W
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Thickness (mm/cm/m)
- 0.521 mm
- Vertical Repeat (mm)
- 31.75 mm
- Wire Gauge Range
- 4 AWG to 8 AWG
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; CSA Approved; IEC 243; IEC 60684-2; ISO/R 1183; MIL-STD-202; NF Approved; SAE-AS-81531
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Markers per Roll1000
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Printer Compatibility (Print)BBP72
Quantity per Row2
Ribbon SeriesR6600
Sleeve SlitsYes
Total Qty per Pack2000 Label(s) / Roll
Trade NamePermaSleeve®
Brady Material NumberB-7646
Label PropertiesHeat Shrink Sleeves
Material PropertiesHeat-shrinkable
SAP B-NumberB-7646
Diameter as Supplied (in/ft/yd)0.375 in
Dimensions0.645 in H
Dimensions 20.645 in H
Height (mm/cm/m)16.38 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)9.50 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.125 in
Minimum Wire Gauge4 AWG
Recovered Diameter (mm/cm/m)3.2 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)0.375 in Dia x 1 in W
Sleeve Width (in/ft/yd)1 in
Thickness (in/ft/yd)0.0205 in
Vertical Repeat1 in
Wire Diameter Range0.125 in to 0.32 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
