Klein Tools ET40 Digital AC/DC Voltage Tester 12-240V AC, 1.5-24V DC, IP41, 9.8-Foot Drop Protection
Klein Tools ET40 Digital AC/DC Voltage Tester 12-240V AC, 1.5-24V DC, IP41, 9.8-Foot Drop Protection
- MPN: ET40
- UPC: 092644691836
- PPN: KLT-ET40
- UNSPSC: 41113637
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$30.00/ EA
Description

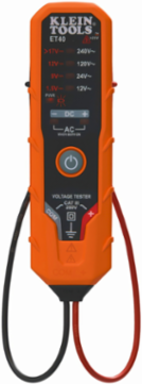

Klein Tools ET40 is an Electronic AC/DC Voltage Tester. It measures AC voltages from 12V to 240V and DC voltages as low as 1.5V up to 24V. Tester also indicates positive and negative DC polarity.
Features
- Voltage Tester for AC voltages from 12V to 240V AC at four useful levels aligned with commonly used residential voltages
- Tests DC voltages from 1.5V to greater than 17 to 24V at four useful levels aligned with commonly used DC voltages

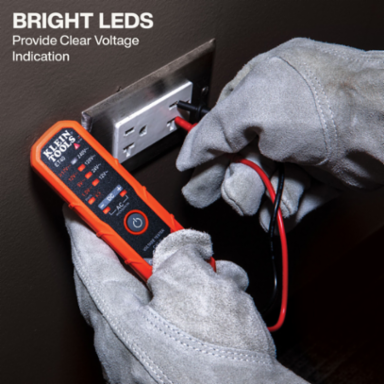

- Bright LEDs illuminate to indicate the type and level of voltage detected
- Built to withstand a 9.8-Foot (3 m) drop
- Indicates polarity when measuring DC voltages
- Powers off automatically after approximately 2 minutes of non-use to conserve battery life
- CAT III 250V, Class 2, Double insulation
- Ingress protection IP41 dust and water resistant

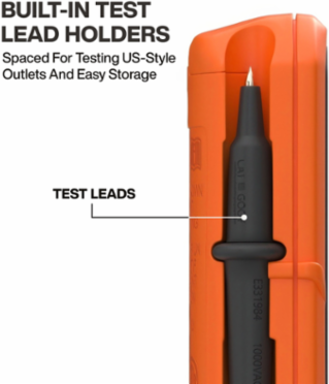

- Built-in test lead holders on sides of tester
- Low battery indicator with easily accessible battery compartment

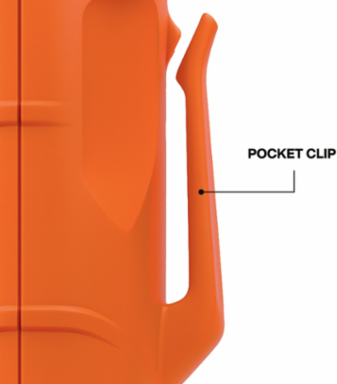

- Pocket clip secures tester to pocket for reliable everyday carrying
- Uses 2 x AAA batteries (included)
- Identifies and distinguishes between AC or DC voltage

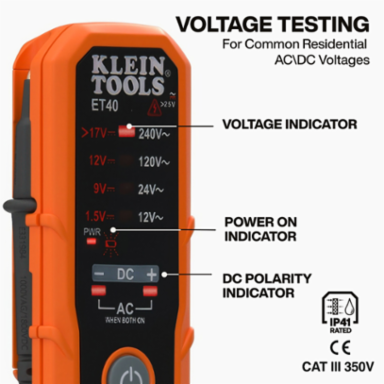

- DC Polarity Indicators for DC Positive, DC Negative, and Both Illuminated for AC. Tests Low DC Voltage to 1.5V. Built in Test Lead Holders on Sides of Tester.
Specifications
Specifications
- Drop Protection
- 9.8' (3 m)
- Display
- Analog LED
- Pollution Degree
- 2
- Batteries
- 2 x AAA
- Overall Width
- 1.11" (2.8 cm)
- Application
- Measures AC/DC voltage
- Case Included
- No
- Overall Length
- 5.24" (13.3 cm)
- Frequency
- 50/60 Hz
- Tests Continuity
- No
- Accuracy
- Approximately 70 to 100% of Indicated Voltage, Except for 2V DC (84 to 100%) and >17V DC (94 to 100% of 17V)
- Width
- 1.5200 in
- Weight
- 0.2680 lbs
Ingress ProtectionIP41

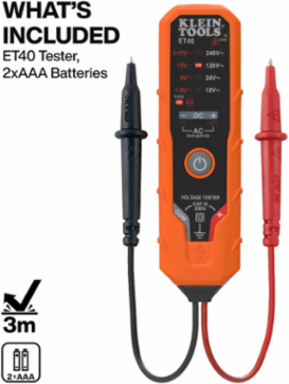

IncludedTester, User Manual, Batteries
Integral Lead StorageYes
Control TypeON/Off Switch for Power ON/OFF
Overall Height1.52" (3.9 cm)
StandardCATIII 250V, CE
MaterialPlastic Housing, PCB with Electronic Components
Lead Length9" (22.9 cm)
VoltageAC Level Indicators - 12V, 24V, 120V, 240V and DC Indicators -1.5V, 9V, 12V, >17-24V
Interchangeable LeadsNo
Height1.1100 in
Depth5.2400 in
