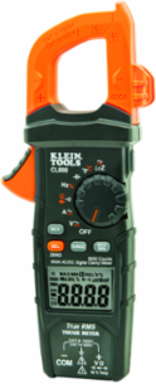

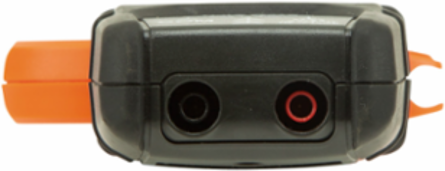

Klein Tools CL800 Digital Clamp Meter 600A AC/DC, 1000V, Low Impedance, TRMS, 9.09 Inch Length
- MPN: CL800
- UPC: 092644690167
- PPN: KLT-CL800
- UNSPSC: 41113654
CAD
$216.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

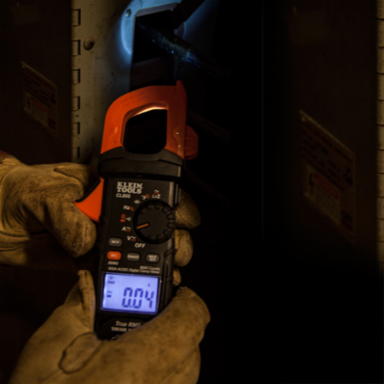

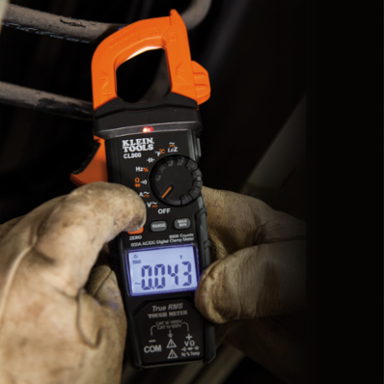

Klein Tools CL800 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
Features
- Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy

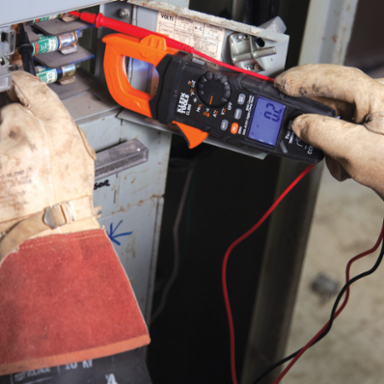

- Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Thermocouple probe measures temperature
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- Built to withstand a 6.6-Foot (2m) drop
- Low battery indicator and easily accessible battery compartment
- Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
- Operating altitude to 6562-Foot (2000m)
- Includes carrying pouch, test leads, thermocouple with adapter and batteries
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
- Features Low Battery Indicator and Auto Shut Off
Documentation & Downloads
Specifications
Key Specifications
| Overall Height | 1.55" (3.9 cm) |
|---|---|
| Frequency | 1Hz - 500 KHz |
| Functions | Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes. Thermocouple probe measures temperature. |
| Included | Digital Clamp Meter; Carrying Case; 41" (1041.4 mm) Test Leads; Thermocouple with Adapter; Batteries |
| Temperature Range | -14° - 1000°F (-26° - 538°C) |
| Ingress Protection | IP40 |
| Batteries | 2 x AAA |
| Display | 6000 Count LCD |
| Jaw Size | 1.38" (3.5 cm) |
| Display Size | 1.6" x 1.04" (4.1 x 2.6 cm) |
| Width | 3.8200 in |
| Weight | 0.7810 lbs |
| Drop Protection | 6.6' (2 m) |
|---|---|
| Standard | CAT IV 600V; CE Certified |
| Voltage | 1000V AC; 1000V DC |
| Capacitance | 6000µF |
| Application | Measures Current 10mA-600A |
| Overall Width | 3.81" (9.7 cm) |
| Current | 600A AC; 600A DC |
| Overall Length | 9.09" (23.1 cm) |
| Ohms (Resistance) | 60MO |
| Height | 1.5400 in |
| Depth | 9.0900 in |
