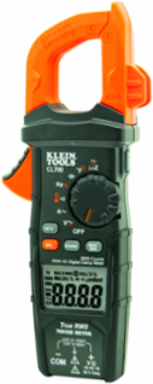

Klein Tools CL700 Digital Clamp Meter 600A AC Auto-Ranging TRMS, LoZ, -14° to 1000°F
- MPN: CL700
- UPC: 092644690150
- PPN: KLT-CL700
- UNSPSC: 41113654
CAD
$164.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Klein Tools CL700 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC current via the clamp, and measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters loaded with innovative, time-saving features.
Features
- Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
- Electronic Tester's clamp measures AC current and its thermocouple probe measures temperature
- Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
- Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
- CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
- Built to withstand a 6.6-Foot (2 m) drop
- Low battery indicator and easily accessible battery compartment
- Includes a carrying pouch, test leads, thermocouple with adapter and batteries
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
- Operating Temperature: 32-degrees F to 104-degrees F (0-degrees C to 40-degrees C)
- Operating altitude to 6562-Foot (2000 m)
- Features Low Battery Indicator
Documentation & Downloads
Specifications
Key Specifications
- Jaw Size
- 1.38" (3.5 cm)
- Voltage
- 1000V AC; 1000V DC
- Overall Width
- 3.81" (9.7 cm)
- Ingress Protection
- IP40
- Current
- 600A
- Drop Protection
- 6.6' (2 m)
- Capacitance
- 6000µF
- Batteries
- 2 x AAA
- Frequency
- 1Hz - 500 KHz
- Display Size
- 1.6" x 1.04" (4.1 x 2.6 cm)
- Width
- 3.8200 in
- Weight
- 0.7380 lbs
ApplicationMeasures AC Current
Display6000 Count LCD
Ohms (Resistance)60MO
IncludedClamp Meter; Carrying Case; Test Leads; Thermocouple with Adapter; Batteries
StandardCAT IV 600V; CE Certified
FunctionsClamp measures AC current and thermocouple probe measures temperature. Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Overall Height1.55" (3.9 cm)
Temperature Range-14° - 1000°F (-26° - 538°C)
Overall Length9.09" (23.1 cm)
Height1.5400 in
Depth9.0900 in
