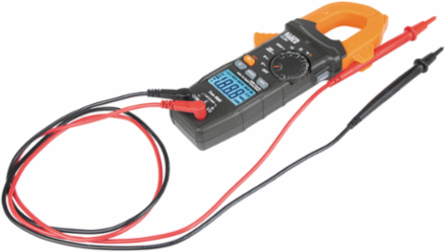

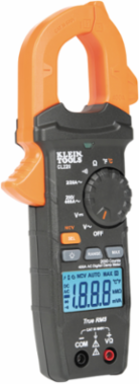

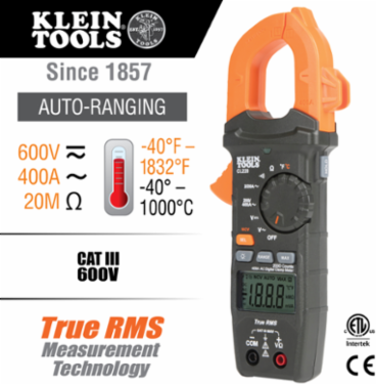

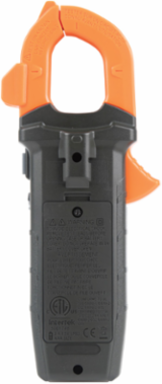

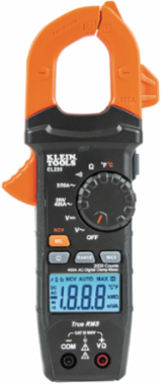

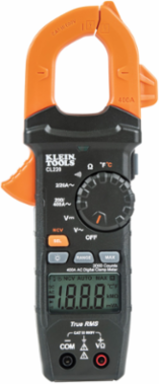

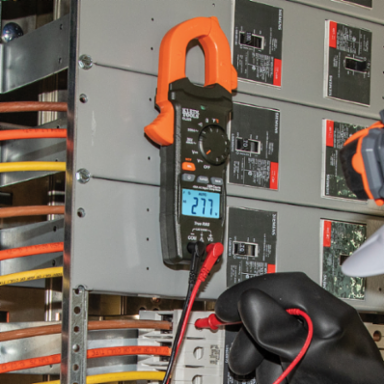

Klein Tools CL220 Digital Clamp Meter 400 Amp AC Auto-Ranging with Temperature, TRMS, Backlit LCD
- MPN: CL220
- UPC: 092644692857
- PPN: KLT-CL220
- UNSPSC: 41113654
CAD
$116.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

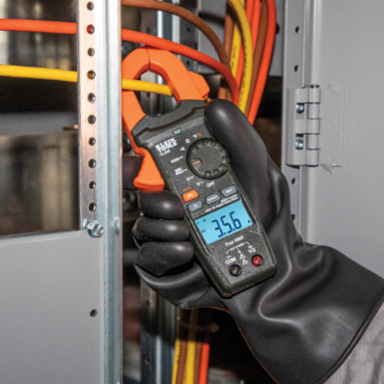

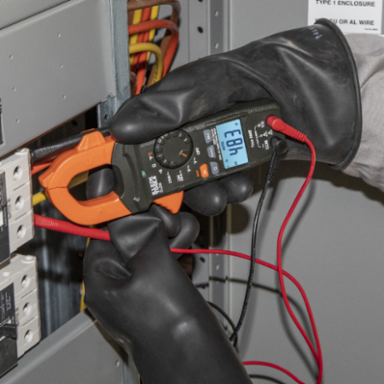

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.
Features
- Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Measures temperature with a K-Type thermocouple probe
- Auto-Range, Hold, Data Hold, and Max value
- Auto-power off after 10 minutes to conserve battery life
- Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2 m) drop
- CAT III 600V, Class 2, Double insulation safety rating
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
- Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
Documentation & Downloads
Specifications
Key Specifications
- Voltage
- 600 V AC/DC
- Standard
- CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
- Auto-Power Off
- Yes
- Application
- Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple
- Functions
- TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature
- Ohms
- 20 MΩ Resistance
- Included
- Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
- Material
- ABS/Electronics
- Type
- Auto Ranging TRMS Clamp with Temperature
- Overall Width
- 3.5 Inch (8.9 cm)
- Jaw Size
- 4.1 cm (1.6 Inch)
- Width
- 3.5120 in
- Weight
- 0.6130 lbs
Batteries3 x AAA
Temperature Range-40° - 1832°F (-40° - 1000°C)
DC Voltage600 V
Display2000 Count Backlit LCD
Current400 A AC
Drop Protection6.6' (2 m)
AC Voltage600 V
DC Polarity IndicatorYes
Overall Height3.8 cm (1.5 Inch)
Overall Length21.5 cm (8.45 Inch)
Height1.5060 in
Depth8.4500 in
