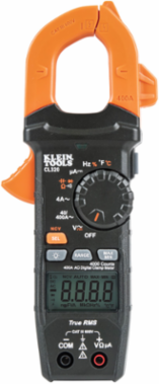

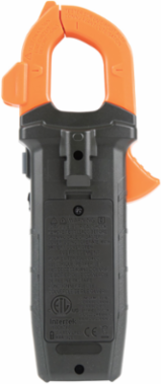

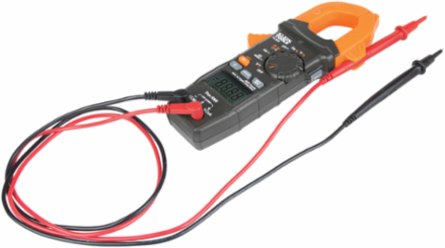

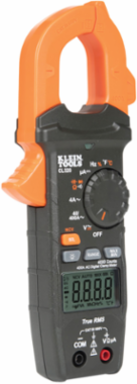

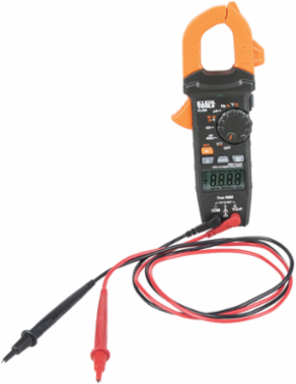

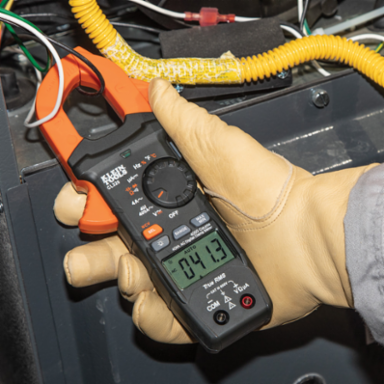

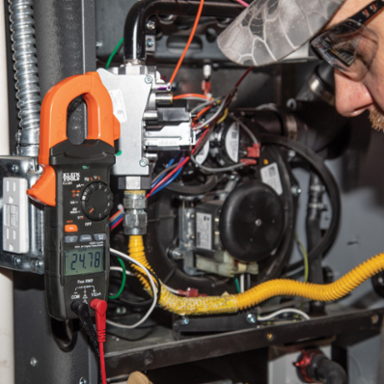

Klein Tools CL320 HVAC TRMS Digital Clamp Meter, 400 Amp AC Current, 600V AC/DC, Backlit LCD
- MPN: CL320
- UPC: 092644692864
- PPN: KLT-CL320
- UNSPSC: 41113654
CAD
$123.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

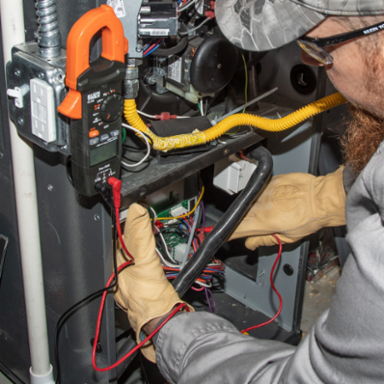

Klein Tools CL320 Clamp Meter is an automatically ranging true root mean square (TRMS) digital clamp meter that measures AC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
Features
- Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
- Non-contact voltage tester integrated into the clamp jaw
- Backlit LCD for ease of viewing in low light
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
- Measures temperature with a K-Type thermocouple probe
- Auto-Range, Data Hold, and Max/Min value
- Auto-power off after 10 minutes to conserve battery life

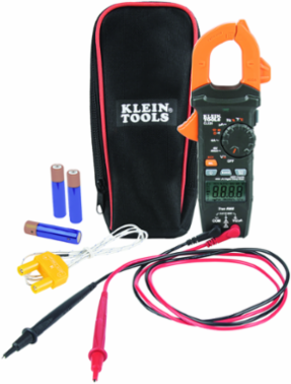

- Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6-Foot (2 m) drop
- CAT III 600V, Class 2, Double insulation safety rating
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
- Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; HVAC Applications
Documentation & Downloads
Specifications
Key Specifications
| Display | 4000 Count Backlit LCD |
|---|---|
| Frequency | 10 Hz -60 kHz |
| Type | HVAC TRMS Clamp |
| Current | 400 A AC |
| Drop Protection | 6.6' (2 m) |
| Ohms | 40MO Resistance |
| Included | Digital Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries |
| DC Voltage | 600V |
| DC Polarity Indicator | Yes |
| Functions | TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Duty Cycle, Diode Test, Continuity, and Temperature |
| Auto Ranging | Yes |
| Overall Height | 3.8 cm (1.5 Inch) |
| Overall Length | 21.5 cm (8.45 Inch) |
| Height | 1.5060 in |
| Depth | 8.4500 in |
| AC Voltage | 600V |
|---|---|
| Material | ABS/Electronics |
| DC Micro-Amp | 200 μA |
| Batteries | 3 x AAA |
| Application | Measures AC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamp, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple |
| Temperature Range | -40° - 1832°F (-40° - 1000°C) |
| Voltage | 600V AC/DC |
| Auto-Power Off | Yes |
| Standard | CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified |
| Capacitance | 4000 µF |
| TRMS | Yes |
| Overall Width | 3.5 Inch (8.9 cm) |
| Jaw Size | 4.1 cm (1.6 Inch) |
| Width | 3.5120 in |
| Weight | 0.6150 lbs |
