Description

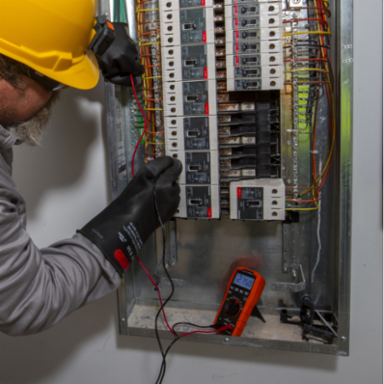

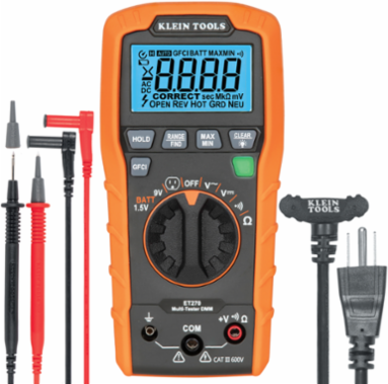

Klein Tools' ET270 is an auto-ranging digital multi-tester that measures AC/DC voltage, resistance, continuity, and performs a battery test. It also tests wiring conditions in standard 120VAC and GFCI electrical receptacles and inspects North American GFCI devices. Comes with Right-Angle Test Leads, Receptacle Test Cord, Instructions, and all required batteries.
Features

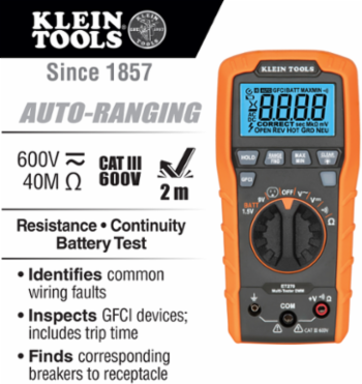

- Digital multimeter is auto-ranging and measures AC/DC voltage, resistance, audible continuity, and performs 9V and 1.5V battery tests

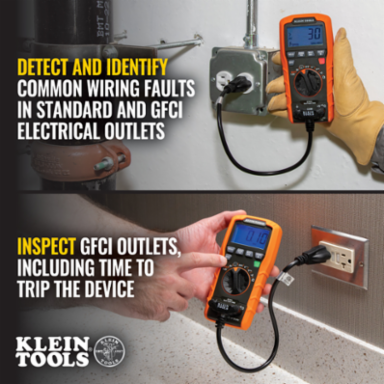

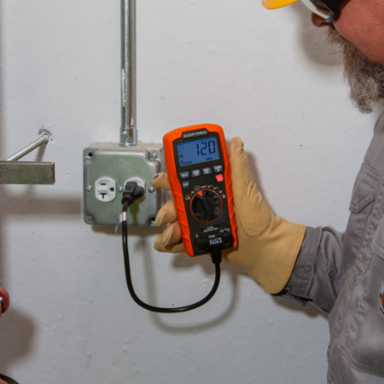

- Detects and identifies common wiring faults in standard and GFCI electrical outlets

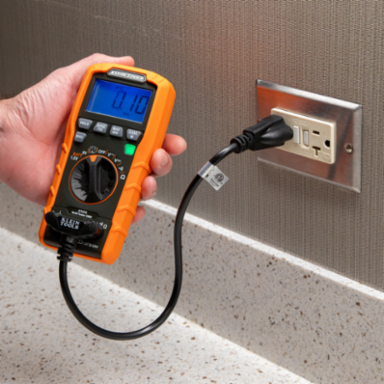

- Inspects GFCI devices, including time to trip the device

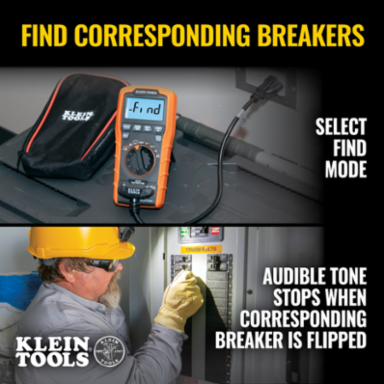

- FIND mode indicates which breaker corresponds to a given receptacle
- Features include backlit display, data hold, default to auto-range with option for manual-range; max/min
- Receptacle test is designed for use with North American 120V AC 3-wire electrical outlets
- Built to withstand a 6.6-Foot (2 m) drop, this meter is designed to be durable and reliable even in demanding working environments

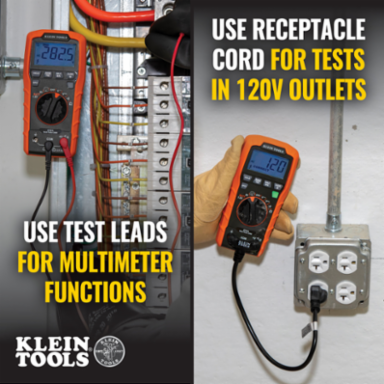

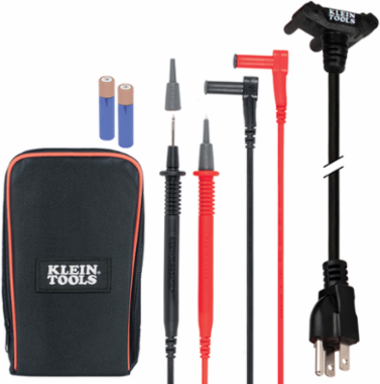

- Digital Multimeter comes with test leads, receptacle test cord, instructions, batteries, all in a convenient storage pouch
- Data Hold; Auto-Range with Option for Manual-Range; Min/Max Values; Backlight
Documentation & Downloads
Specifications
Key Specifications
- Voltage
- 600V AC/DC
- Application
- Testing and Measuring Voltage; Detects and Identifies Common Wiring Problems in GFCI Receptacles
- Type
- Digital Multimeter and GFCI Receptacle Tester
- Drop Protection
- 6.6' (2 m)
- Standard
- CAT III 600V, Class 2, Double insulation
- Color
- Orange/ Black
- Material
- ABS and Electrical Components
- Overall Width (Inch)
- 3.13
- Overall Length (Inch)
- 6.41
- Overall Height (cm)
- 4.7
- Overall Width (cm)
- 8
- Height
- 1.8400 in
- Depth
- 6.4100 in
Batteries2 x AAA
Display4000 Count LCD
Ohms (Resistance)40MΩ
IncludedDigital Multimeter; Right-Angle Test Leads; Receptacle Test Cord; Batteries; User Manual; Storage Pouch
Frequency50 to 60Hz
FunctionsAC/DC Voltage; Resistance; Continuity; Battery Test; Finds Breaker to Corresponding Receptacle; Shows Amount of Time it Takes to Trip GFCI; Detects and Identifies Common Wiring Problems in GFCI Receptacles
Accuracy65°F to 83°F (18°C to 28°C) - +/- (% of Reading + Number of Least Significant Digits)
Weight (g)598
Weight (oz)21.1
Overall Length (cm)16.3
Overall Height (Inch)1.84
Width3.1300 in
Weight0.5650 lbs
