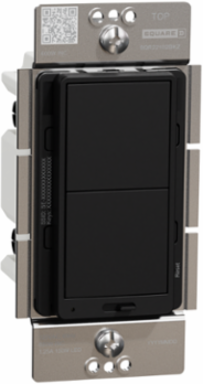

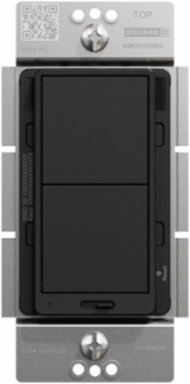

Schneider Electric SQR22102BKZ Dimmer 600 W 1P Black X Series, Halogen/Incandescent/LED Compatible

MPN: SQR22102BKZ
UPC: 785901908135
PPN: SCH-SQR22102BKZ
UNSPSC: 39122206

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$106.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric SQR22102BKZ Dimmer is designed to enhance lighting control and versatility in your space. With a capacity of 600 watts, this reliable dimmer is compatible with halogen, incandescent, and LED lighting, making it a flexible choice for various lighting setups. The sleek black finish of the X Series not only adds a modern touch but also integrates seamlessly into any home or commercial environment, allowing you to create the perfect ambiance. Its thoughtful engineering ensures smooth dimming performance, providing both energy efficiency and comfort in illuminating your surroundings.

Features

Rocker dimmer matt black.
Energy monitoring and remote control.
Z-Wave certified to work with most hubs and existing home automation systems.
Ideal for controlling incandescent and hallogen bulbs up to 600W and LED bulbs up to 150W.
Eliminates flickering on LED lights.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China
Weight	181.5 g

Actuator	rocker

Complementary Attributes

Ie Rated Operational Current Ac	5 A

Ue Rated Operational Voltage	120 V

Important Information Attributes

Persona Type Ids	EU, LC, SC
Load Type	halogen 0...600 W, incandescent 0...600 Wdimmable LED 0...150 W
Carbon Footprint Of The Distribution Phase A4	0.05227832082163409, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.11521411721798418, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	22 kg CO2 eq., 22.413
Local Publishable Date	2026-08-19
Use Carbon Footprint	22.413
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2011020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Standard
Market Segmentation	Residential
Actuator	rocker
Device Application	control
Material	plastic: strapmetal: fixing frame
Network Type	AC
Number Of Poles	1
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	1 piece
Returnability	Yes
Surface Finish	Matte
Total Lifecycle Carbon Footprint	32 kg CO2 eq.
Main Color Tint	black
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	End User, Contractor, Electrician
X Main Color Tint	black
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2 kg CO2 eq., 0.1797462435678333
Carbon Footprint Of The Manufacturing Phase A1 To A3	9 kg CO2 eq., 8.862559119824756
Local Data Status	Publishable
Return Indicator	Y
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	3
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Aesthetic Name	X Series
Energy Efficiency Optimized	False
Mounting Mode	by screws
Number Of Gangs	1 gang
Number Of Ways	3
Product Or Component Type	dimmer
Range	Square D X Series
Software Version	v5.9.4
Sustainable Packaging	No
Color Tint	black

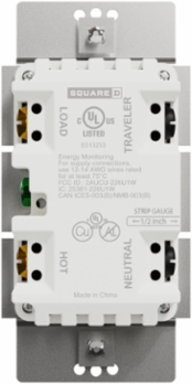

Connections Terminals	phase and neutral 4 screw terminal copperearth 1 screw terminal copper
Data Source	extrapolated product
Customs Code	8533390040
Functional Unit Description	The product can be used for single pole or 3-Way with Rocker Switch, the LED light can be adjusted manually and the switch can be controlled remotely. Air-Gap Switch feature meets UL requirement and disconnect power from load locally, refer to standard 802.11 b/g/n. Its functional units meet the following technical indicators:& 10- Voltage: 120VAC, 60HZ& 10- Dimmable LED: 1.25A (150W)
Functional Unit Unit	unit
Recyclability Potential In %	32

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2011020EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2011020_V2
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Reach Regulation	Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	31.622797801432206
Environmental Disclosure	ENVPEP2011020_V2
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Verification Date	2026-05-26
Psr Version	PSR-0005-ed2-2016 03 29
