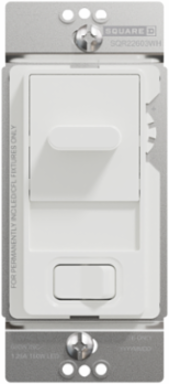

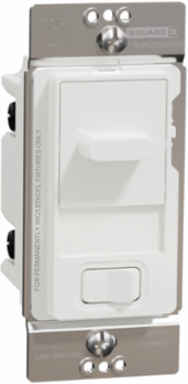

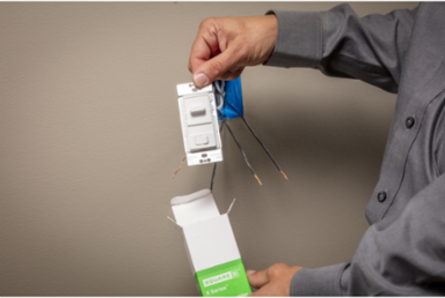

Schneider Electric SQR22603WH X Series 15A Matte White Slider Dimmer, 120V, 1 Gang, 3 Way
- MPN: SQR22603WH
- UPC: 785901534990
- PPN: SCH-SQR22603WH
CAD
$29.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D X Series 15A 500W Single-Pole/3-way Slider Dimmer refreshes a room with modern design. The rated operational voltage of this dimmer is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Enjoy the easy-to-use dimming to create the right lighting scene and to reduce your energy usage. It eliminates near-off flickering on LED lights. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. It features protective painted surface treatment. This dimmer benefits from an elegant matt finishing, constituting an added value for your interior design. This dimmer has a width of 45 mm, a height of 103 mm and a depth of 50 mm. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. This device has load of 600W ideal for controlling incandescent and halogen bulbs. It has load of 150W for compact fluorescent and LED lamps. This device enables flush mounting. This device is white with matte surface finish, easy installations and easy-to-clean. This device is compliant with UL and cULus certification.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, United States |
|---|
| Depth | 50 mm |
|---|
Physical Attributes
| Color Tint | white |
|---|
| Main Color Tint | white |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| Load Type | halogen 5...500 W, incandescent 5...500 Wdimmable LED 0...150 W |
| Local Publishable Date | 2026-06-23 |
| Pre Comm Date | 2020-12-18 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Aesthetic Name | X Series |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Number Of Ways | 3 |
| Product Or Component Type | dimmer |
| Range | Square D X Series |
| Surface Finish | Matte |
| Targeted Channel | distributor |
| Main Color Tint | white |
| Width Nominal | 45 mm |
| [Ie] Rated Operational Current Ac | 15 A |

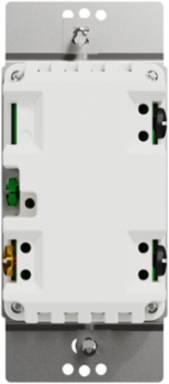

| Connections - Terminals | phase and neutral 4 screw terminal copperearth 1 screw terminal copper |
| Package Weight(Lbs) | 127.006 g |
| Warranty (In Months) | 24 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| Local Data Status | Publishable |
| Pre Comm Announcement Date | 2020-10-30 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Actuator | slide |
| Device Application | control |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Poles | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Sustainable Packaging | No |
| Color Tint | white |
| Height Nominal | 103 mm |
| Certificate Agency | cULus |
| [Ue] Rated Operational Voltage | 120 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8533390040 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | dimmer |
|---|
ETIM
| ETIM 8 | EC000025 |
|---|
| ETIM 9 | EC000025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
