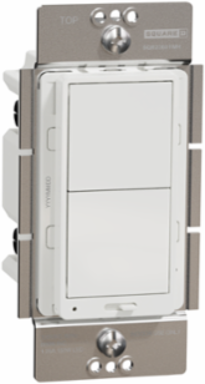

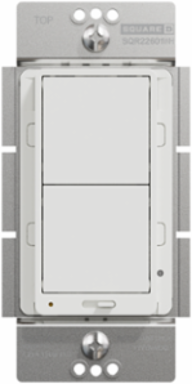

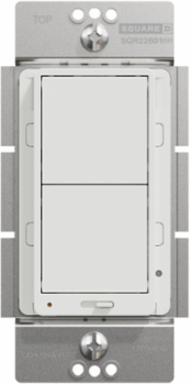

Schneider Electric SQR22601WH X Series 15A 600W Rocker Dimmer, 3 Way, Flush Mount, White
- MPN: SQR22601WH
- UPC: 785901534914
- PPN: SCH-SQR22601WH
CAD
$37.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D X Series 15A 600W Single-Pole/3-way Rocker Dimmer refreshes a room with modern design. The rated operational voltage of this dimmer is 120V. The mechanism with fixing frame belongs to X Series aesthetic group. The connection are screw terminal. Enjoy the easy-to-use dimming to create the right lighting scene and to reduce your energy usage. It eliminates near-off flickering on LED lights. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. It features protective painted surface treatment. This dimmer benefits from an elegant matt finishing, constituting an added value for your interior design. This dimmer has a width of 51 mm, a height of 104 mm and a depth of 47 mm. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. This device has load of 600W ideal for controlling incandescent and halogen bulbs. It has load of 150W for compact fluorescent and LED lamps. This device enables flush mounting. This device is white with matte surface finish, easy installations and easy-to-clean. This device is compliant with UL and cULus certification.
Features
- It is fully engineered to eliminate the distracting flickering and buzzing common in modern lighting arrays. This high-performance dimmer safely manages up to 150 Watts of dimmable LED/CFL bulbs or up to 600 Watts of traditional incandescent and halogen loads, allowing you to future-proof your residential lighting control.

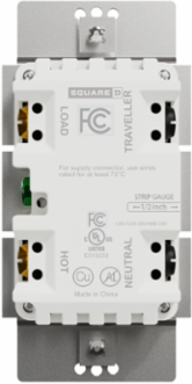

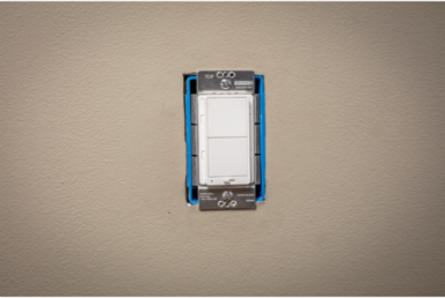

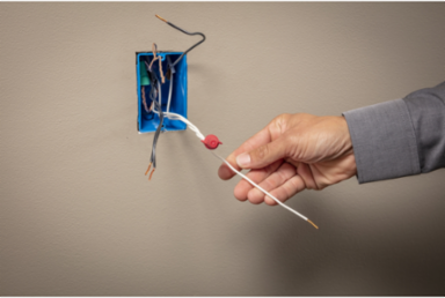

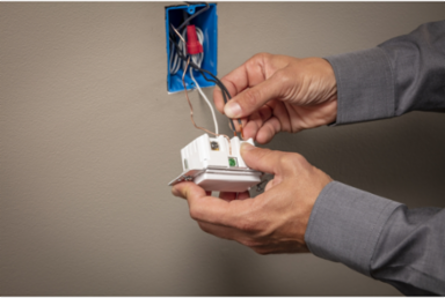

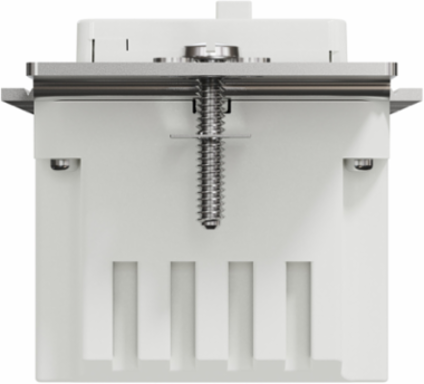

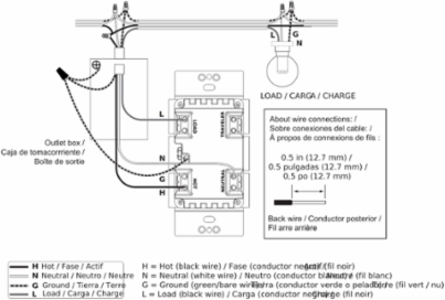

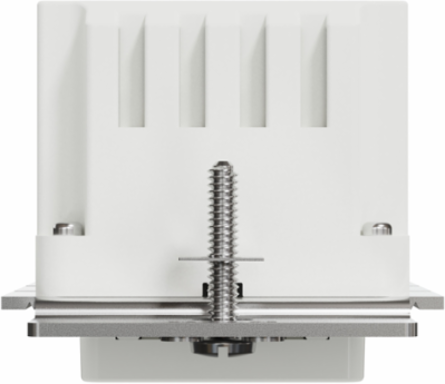

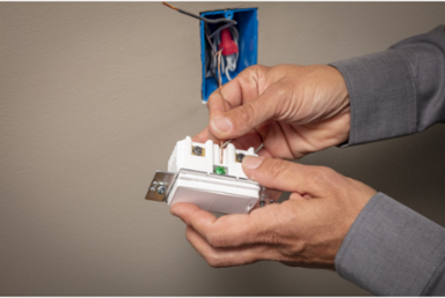

- Designed for rapid, straightforward installation, it features robust back wire clamps and four secure copper screw terminals, alongside a dedicated earth ground terminal. The mechanism fits seamlessly into standard flush-mount electrical boxes with an integrated metal fixing frame that prevents misalignment during drywall installation.

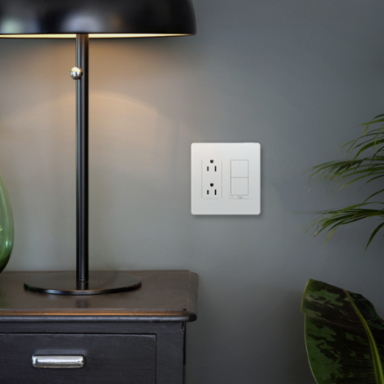

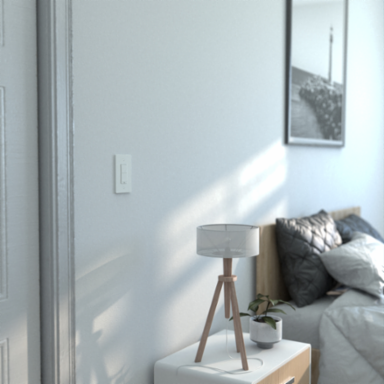

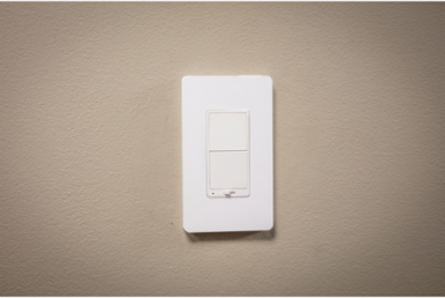

- Part of the premium Square D X Series aesthetic group, it sports a sophisticated matte white finish that complements contemporary interiors while actively hiding fingerprints and smudges. The durable, easy-to-clean plastic strap housing delivers a flush, high-end look that elevates standard wall hardware into an intentional design element.
- Built to meet the highest safety standards, this product carries complete cULus certification and complies strictly with UL 1472, ICES-003, and NEMA SSL 7A benchmarks. This rigorous engineering guarantees reliable performance under a standard 120V AC, 60Hz network, ensuring your electrical inspection passes without a single hitch.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, Romania, United States |
|---|
| Depth | 47 mm |
|---|
Physical Attributes
| Color Tint | white |
|---|
| Main Color Tint | white |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| Load Type | halogen 0...600 W, incandescent 0...600 Wdimmable LED 0...150 W |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.2 kg CO2 eq., 0.17330905027201557 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 9 kg CO2 eq., 8.545167195423318 |
| Local Data Status | Publishable |
| Pre Comm Date | 2020-03-11 |
| Stocking Flag | Y |
| Use Carbon Footprint | 22.413 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2011020EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Actuator | rocker |
| Device Application | control |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Poles | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Surface Finish | Matte |
| Targeted Channel | distributor |
| Color Tint | white |
| Pep Code | ENVPEP2011020_V2 |
| Pep Verification Date | 2026-05-26 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 104 mm |
| Certificate Agency | cULus |
| [Ue] Rated Operational Voltage | 120 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6] | 0.1186 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 22.413 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 267.24 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 3.3099 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 59.642 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 59.642 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.05040609445612102, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.11108799180797371, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 22 kg CO2 eq., 22.413 |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Aesthetic Name | X Series |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Number Of Ways | 3 |
| Product Or Component Type | dimmer |
| Range | Square D X Series |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 31 kg CO2 eq. |
| Main Color Tint | white |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |

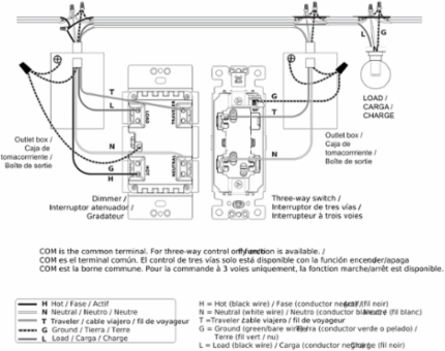

| Functional-unit Description | The product can be used for single pole or 3-Way with Rocker Switch, the LED light can be adjusted manually and the switch can be controlled remotely. Air-Gap Switch feature meets UL requirement and disconnect power from load locally, refer to standard 802.11 b/g/n. Its functional units meet the following technical indicators:& 10- Voltage: 120VAC, 60HZ& 10- Dimmable LED: 1.25A (150W) |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 32 |
| Width Nominal | 51 mm |
| [Ie] Rated Operational Current Ac | 15 A |

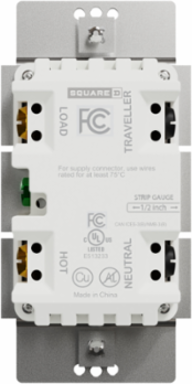

| Connections - Terminals | phase and neutral 4 screw terminal copperearth 1 screw terminal copper |
| Package Weight(Lbs) | 175 g |
| Warranty (In Months) | 24 |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 22.389 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 475.58 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 18.846 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 535.22 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 475.58 |
| Customs Code | 8533390040 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2011020EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2011020_V2 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 31.292970331959427 |
| Environmental Disclosure | ENVPEP2011020_V2 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2026-05-26 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | dimmer |
|---|
ETIM
| ETIM 8 | EC000025 |
|---|
| ETIM 9 | EC000025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 years |
|---|
| Warranty | 2 years |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
