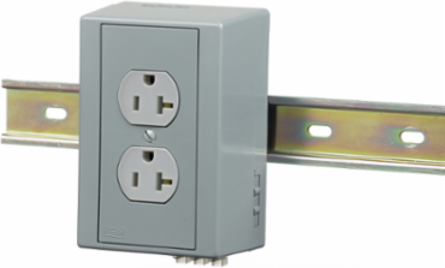

Hubbell Wiring Device-Kellems DRUB20 DIN Rail Utility Box with 20A Duplex Receptacle, Gray, 5.62 in x 3.31 in x 2.54 in
- MPN: DRUB20
- UPC: 783585108049
- PPN: HBL-DRUB20
- UNSPSC: 39121303
CAD
$116.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
DIN Rail Utility Box, Complete Unit- Duplex Receptacle, DIN Rail Box, 20A Duplex, Gray.
Features
- It provide utility power to any control cabinet
- Optional auxiliary contacts for feed through capability
- Pre-wired "kits" are available for end-user customization
- 20A 125V, 2-Pole 3-Wire Grounding
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | DRUB20 AutoCAD Drawing |
|---|---|
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Current / Amperage Rating | 20 A |
| Height | 2.54 in |
| Industry Standard(s) | UL Listed |
| Application | Unit Pre-Wired with Duplex Receptacles |
| Color | Gray |
| NEMA Rating | 5-20R |
| Size | 5.62 in x 3.31 in x 2.54 in |
| Standard | UL Listed |
| Width | 3.31 in |
| Weight | 1 lb. |
| Nema Rating | 5-20R |
| Class Code | A28 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A28A300 |
| Construction | Molded and Fabricated |
| Material | Composite |
| BOX SIZE | 6.800x12.800x9.500 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585108049 |
| Case Weight | 4.660 lb. |
| Lowest Level UOM | Each |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
|---|---|
| Country of Origin | United States |
| Dimensions | 5.62 in x 3.31 in x 2.54 in |
| Horsepower - Maximum | 1 |
| Amperage Rating | 20 A |
| Cable Entry | Terminals |
| Length | 5.62 in |
| Number of Outlet | 1-Device |
| Special Features | 20A 125V, 2-Pole 3-Wire Grounding |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
| Display Size | Standard Sized Product |
| Number Of Outlets | 1-Device |
| Description - Invoice | DIN-R UTL BOX, 20A 125V, DUP, GY |
| Harmonization Code | 8536690200 |
| MSDS Flag | No |
| Material - Mounting Hardware | Vertical Mount, DIN Rail Mount |
| Current Rating | 20 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 5.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Each - Pack Description | Each |
| Pallet Height | 45.800 in |
| Pallet Weight | 488.290 lb. |
| NAICS Code | 335931A107 |
