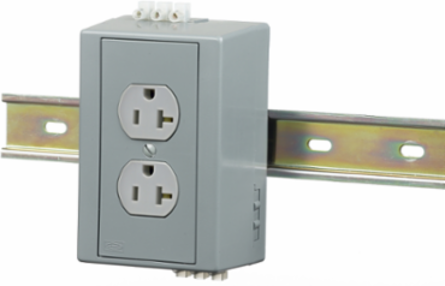

Hubbell Wiring Device-Kellems DRUB20AC DIN Rail Utility Box with 20A Duplex Receptacle, Gray
- MPN: DRUB20AC
- UPC: 783585108155
- PPN: HBL-DRUB20AC
- UNSPSC: 39121303
CAD
$155.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
DIN Rail Utility Box, Complete Unit- Duplex Receptacle with Aux Contact, DIN Rail Box, 20A Duplex, Gray.
Features
- It provide utility power to any control cabinet
- Optional auxiliary contacts for feed through capability
- Pre-wired "kits" are available for end-user customization
- 20A 125V, 2-Pole 3-Wire Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 5.62 in x 3.31 in x 2.54 in
- Horsepower - Maximum
- 1
- Amperage Rating
- 20 A
- Cable Entry
- Terminals
- Length
- 5.62 in
- Number of Poles
- 2-Pole
- Size
- 5.62 in x 3.31 in x 2.54 in
- Standard
- UL Listed
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Class Code
- A28
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A28A300
- Construction
- Molded and Fabricated
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.150 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A107
Current / Amperage Rating20 A
Height2.54 in
Industry Standard(s)UL Listed
ApplicationUnit Pre-Wired with Duplex Receptacles
ColorGray
NEMA Rating5-20R
Number of Wires3-Wire
Special Features20A 125V, 2-Pole 3-Wire Grounding
TypeBox and Device
Width3.31 in
Engineering Drawing 1 Display TextDRUB20AC AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Nema Rating5-20R
Number Of Wires3-Wire
Description - InvoiceDIN-R UTL BOX, 20A 125V, DUP, W/AC, GY
Harmonization Code8537109150
MSDS FlagNo
Material - Mounting HardwareVertical Mount, DIN Rail Mount
Current Rating20 A
BOX SIZE6.700x12.000x9.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585108155
Case Weight5.000 lb.
Lowest Level UOMEach
