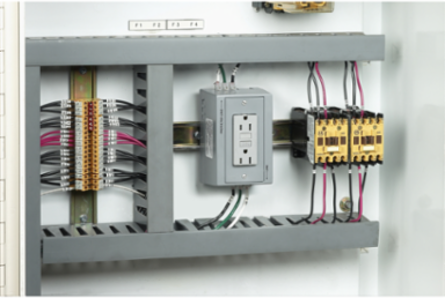

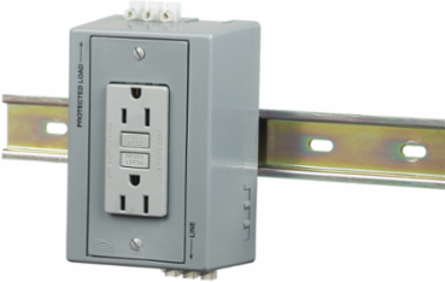

Hubbell Wiring Device-Kellems DRUBGFI15AC DIN Rail Utility Box, GFCI 15A, 2-Pole, 5.62 in x 3.31 in x 2.54 in, Gray
- MPN: DRUBGFI15AC
- UPC: 783585108094
- PPN: HBL-DRUBGFI15AC
- UNSPSC: 39121303
CAD
$240.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
DIN Rail Utility Box, Complete Unit- GFCI with Aux Contact, 1) 15A Gray.
Features
- It provide utility power to any control cabinet
- Optional auxiliary contacts for feed through capability
- Pre-wired "kits" are available for end-user customization
- 15A 125V, 2-Pole 3-Wire Grounding
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- DRUBGFI15AC AutoCAD Drawing
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Current / Amperage Rating
- 15 A
- Height
- 2.54 in
- Industry Standard(s)
- UL Listed
- Application
- Unit Pre-Wired with GFCI Duplex
- Color
- Gray
- Length
- 5.62 in
- Number of Poles
- 2-Pole
- Size
- 5.62 in x 3.31 in x 2.54 in
- Standard
- UL Listed
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.95 lb.
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Description - Invoice
- DIN-R UTL BOX,15A 125V,DUP,GFCI,W/AC,GY
- Harmonization Code
- 8536309999
- MSDS Flag
- No
- Material - Mounting Hardware
- Vertical Mount, DIN Rail Mount
- Current Rating
- 15 A
- BOX SIZE
- 6.700x12.500x9.600 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585108094
- Case Weight
- 5.800 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.900 in
- Pallet Weight
- 649.600 lb.
- NAICS Code
- 335931A107
General Literature Asset 1 Display TextPulp & Paper Solutions
Country of OriginChina
Dimensions5.62 in x 3.31 in x 2.54 in
Horsepower - Maximum0.5
Amperage Rating15 A
Cable EntryTerminals
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
Special Features15A 125V, 2-Pole 3-Wire Grounding
TypeBox and Device
Width3.31 in
Voltage Rating Description125 V
Display SizeStandard Sized Product
Number Of Poles2-Pole
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
ConstructionMolded and Fabricated
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.6 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585108093
Pallet Length48.000 in
Pallet Width40.000 in
