Hubbell Premise Wiring KP720GY Din Rail Utility Box, 1.60" Opening, Gray, 3.31 Inch Width
Hubbell Premise Wiring KP720GY Din Rail Utility Box, 1.60" Opening, Gray, 3.31 Inch Width
- MPN: KP720GY
- UPC: 783585335612
- PPN: HBL-KP720GY
- UNSPSC: 39131711
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$9.11/ EA
Description

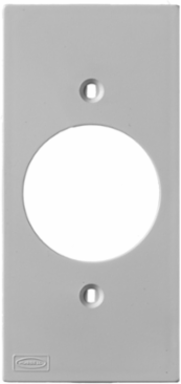

Din Rail Utility Box, Device Plate, 1.60" Opening, Gray.
Features
- It provides utility power to any control cabinet
- Optional auxiliary contacts for feed through capability
- Pre-wired "kits" are available for end-user customization
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Industry Standard(s)
- UL Listed
- Cover Type
- Specific to Non-Metallic Raceway
- Non Hazardous Location
- Non-Hazardous
- Standard
- UL Listed
- Width
- 3.31 in
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- DIN-R UTL BOX, F-PLT, SING, 1.60", GY
- MSDS Flag
- No
- Material
- Non-Metallic
- Series
- PT1;PP1;PL1;Non Metallic PlugTrak;PW1;PW2;PB2;PB3;PS3
- BOX SIZE
- 3.500x5.200x5.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585335612
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
ColorGray
Standards - RoHS Compliance StatusCM
Height2.54 in
Special FeaturesStandard Product
TypePlates
Weight0.35 lb.
Style1.60" Opening
Image Actual Or RepresentativeA
ConstructionMolded
Number of Gang(s)1-Gang
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight2.200 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
