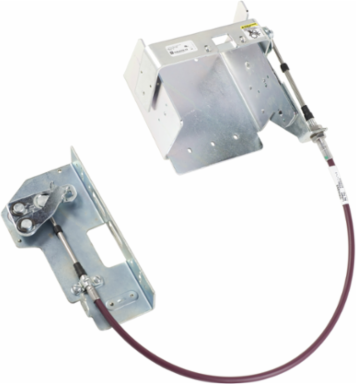

Square D 9422CSF70 Disconnect mechanism, circuit breaker, cable operated, 150/250A, 3 pole, PowerPacT H and J breaker, 84 inch cable

Disconnect mechanism, circuit breaker, cable operated, 150/250A, 3 pole, PowerPacT H and J breaker, 84 inch cable
  • MPN: 9422CSF70
  • UPC: 785901663638
  • PPN: SCH-9422CSF70

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$651.02/ EA

Description

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with Compact NSF, PowerPact H and PowerPact J circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250 A. This mechanism has a 84 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified

Specifications

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free
Yes
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Pvc FreeYes
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes

Complementary

Number Of Cables
1
Provided Equipment
ordered separately
Cable Length84 in
Circuit Breaker NameMG-NSF 2 || MG-NSF 3 || PowerPact H or J 2 || PowerPact H or J 3

Contractual warranty

Warranty
18 months

Specifications

Range Of Product
9422C
Product Or Component TypeSingle Cable Operating Mechanism
