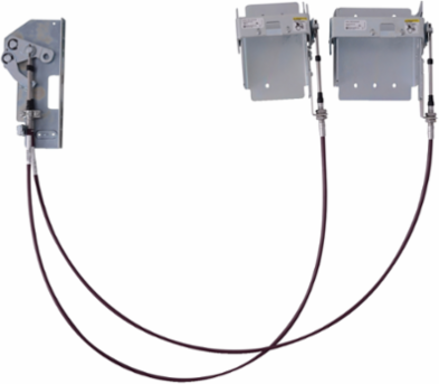

Square D 9422CSFJD10 Disconnect mechanism, circuit breaker, dual cable operated, 600A, 2/3 pole, 1-120in H/J cable, 1-120in D/L cable
- MPN: 9422CSFJD10
- PPN: SCH-9422CSFJD10
CAD
$1622.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. The dual cable operating mechanism is for use with PowerPacT circuit breakers. The cable mechanism allows a single handle operator to operate two circuit breakers. This mechanism has one 120 inch CSF cable and one 120 inch CSJ cable. The cable operated mechanism can operate circuit breakers with a frame size of 250A or 600A. This flexible cable mechanism complies with UL and CSA standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Cable Length
- 120 in and 120 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Circuit Breaker Name
- MG-NSF 3PowerPact H or J 3, MG-NSJ 3, PowerPact D 3MG-NSF 2, PowerPact H or J 2
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Number Of Cables
- 2
- Product Or Component Type
- Dual Cable Operating Mechanism
- Range Of Product
- 9422C
- Sustainable Packaging
- No
- Package Weight(Lbs)
- 7.258 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1923
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier3
Function OptionStandard
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Provided Equipmentordered separately
ReturnabilityNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- Dual Cable Operating Mechanism
- Range Of Product
- 9422C
Provided Equipmentordered separately
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
