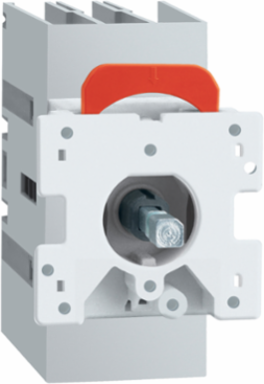

Schneider Electric VLS3P016D1 TeSys VLS Disconnect Switch 16A 3-Pole 10HP 5kA SCCR Size 1 Door Mount
Schneider Electric VLS3P016D1 TeSys VLS Disconnect Switch 16A 3-Pole 10HP 5kA SCCR Size 1 Door Mount
- MPN: VLS3P016D1
- PPN: SCH-VLS3P016D1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$103.25/ EA
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 16A disconnect switch has 3 normally open poles and mounts directly in the enclosure door. Per UL and CSA this this disconnect switch has a 1 HP rating at 120 VAC and a 2 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 5 HP rating at 200 to 208 VAC and 240 VAC and a 10 HP rating at 480 and 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 7.5 kW rating at 400 and 500 V and a 11 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.77 inches wide and 2.87 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL60947-4-1, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Complementary
- Network Frequency
- 50/60 Hz
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- class 120 - 60 %
- Mounting Support
- door
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- Performance Level
- high performance
- Making Capacity
- 24 A 690 V AC-21A || 48 A 690 V AC-22A || 160 A 690 V AC-23A
- Contacts Type And Composition
- 3 NO
- Electrical Durability
- 100000 cycles AC-21A
- Mechanical Durability
- 100000 cycles
- Colour
- grey
- Tightening Torque
- power circuit 1.8-2 N.m screw clamp terminals
- Breaking Capacity
- 24 A 690 V AC-21A) || 48 A 690 V AC-22A) || 128 A 690 V AC-23A)
- Rated Conditional Short-Circuit Current
- 50 kA 400 V 16 A gG
[Ue] Rated Operational Voltage600 V AC 50/60 Hz UL 508

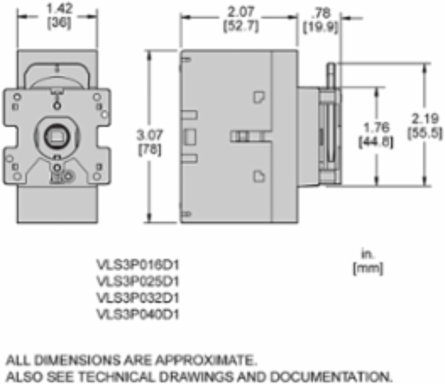

Height78 mm
[Ith] Conventional Free Air Thermal Current16 A (at 55 °C)
Network TypeAC
Net Weight0.135 kg
[Uimp] Rated Impulse Withstand Voltage8 kV
Connections - Terminalspower circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - without cable end
[Icm] Rated Short-Circuit Making Capacity1128 A 690 V
[Ie] Rated Operational Current16 A Ue: 600 V UL 508 || 16 A AC-21A Ue: 400 V || 16 A AC-21A Ue: 500 V || 16 A AC-21A Ue: 690 V || 16 A AC-22A Ue: 400 V || 16 A AC-22A Ue: 500 V || 16 A AC-22A Ue: 690 V || 16 A AC-23A Ue: 400 V || 16 A AC-23A Ue: 500 V || 16 A AC-23A Ue: 690 V
Poles Description3P
Width45 mm
Depth73 mm
Rated Operational Power In W7.5 kW 400 V AC-23A) || 7.5 kW 500 V AC-23A) || 11 kW 690 V AC-23A)
[Icw] Rated Short-Time Withstand Current800 A 690 V 1 s
Environment
- Product Certifications
- cULus || GL
- Standards
- UL 508 || CSA C22.2 No 14 || IEC 60947-3
- Mechanical Robustness
- vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Ambient Air Temperature For Operation-25-55 °C
Ip Degree Of ProtectionIP20 IEC 60529
Fire Resistance960 °C IEC 60695-2-11
Specifications
- Product Or Component Type
- switch body
- Range
- TeSys
Product NameTeSys VARIO LS
Device Short NameVLS3P
