Schneider Electric VLSFH1UL Disconnect switch, TeSys VLS, CC fuse holder, for 3 pole disconnect switch, for up to 25A fuse

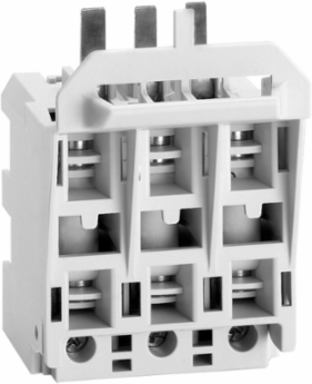

Disconnect switch, TeSys VLS, CC fuse holder, for 3 pole disconnect switch, for up to 25A fuse
  • MPN: VLSFH1UL
  • PPN: SCH-VLSFH1UL

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$103.11/ EA

Description

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fuse holder block is suitable for Class CC fuses. This fuse holder block can be used with a VLS3P016R1, VLS3P025R1 or VLS3P032R1 DIN rail mount disconnect switch. Fuse holder has a UL rating of 30 A at 600VAC 50/60 Hz. This protective terminal cover is 2.96 inches tall, 2.07 inches wide and 3.15 inches deep. The switch weighs 0.30 lbs. This fuse holder is cULus Listed and meets IEC 60947-3 requirements.

Specifications

Complementary

Network Frequency
50/60 Hz
[Ith] Conventional Free Air Thermal Current
25 A 55 °C
[Ui] Rated Insulation Voltage
690-690 V AC 50/60 Hz
Tightening Torque
power circuit 1.8-2 N.m screw clamp terminals
Connections - Terminals
power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible without cable end
Height75.2 mm
Mounting SupportDIN rail
Width52.5 mm
Depth80.1 mm
Net Weight0.135 kg

Specifications

Fuse Size
CC
Poles Description
3P
Product Name
TeSys VARIO LS
Range
TeSys
Network TypeAC
Product Or Component Typefuse holder
Device Short NameVLSFH

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free
Yes
Eu Rohs Directive
Compliant
Reach Free Of Svhc
Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold

Environment

Product Certifications
cULus || GL
Standards
UL 508 || CSA C22.2 No 14 || IEC 60947-3
Ambient Air Temperature For Operation-25-55 °C
Ip Degree Of ProtectionIP20 IEC 60529
