Mersen Y331152 Fuse Holder UltraSafe™ 800VAC 1000VDC UL Fuse size 14x51 3-Pole+N Microswitch Pressure Plate IP20
- MPN: Y331152
- UPC: 782001311063
- PPN: FER-Y331152
CAD
$432.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

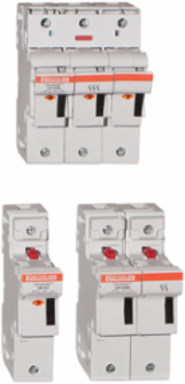

The innovative and comprehensive UltraSafe™ range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe™ range is made of tough and durable thermoplastic or thermoset material.
Specifications
Key Specifications
- Rated voltage AC UL
- 800 V
- Frequency (Hz)
- 50 ... 60 Hz
- Rated voltage DC IEC
- 750 V
- ROHS Compliant
- Yes
- Short Circuit Current Rating (SCCR)
- 100 kA
- Design Details
- US14 triple pole + neutral conductor, 3 microswitches
- Indication System Type
- Microswitch
- Wiring range
- #2 - #14
- Connection/Terminal Type
- Clip
- Torque Rating
- 30.978 lb-in
- Rated Impulse Withstand Voltage
- 8 kV
- Installation Mounting
- DIN rail acc. EN 60715
- Conventional Free Air thermal Current With Fuse-Links Ith
- 50 A
- Length
- 3.01 in
- Weight
- 1.374 lb
Rated voltage DC UL1000 V
Rated voltage AC IEC750 V
Ampere Rating50 A
AC or DCAC/DC
Fuse Size14x51
Indication SystemYes
Number of Poles3-Pole+N
Connection/Terminal MaterialTin-Plated Copper
Fuse Installation MethodClip-in
Max Fuse Rating50 A
Rated Insulation Voltage690 V
Body/Insulating MaterialPolyamide
Width2.09 in
Height4.36 in
