Schneider Electric VLSC3P2 TeSys VLS 3-Pole Terminal Cover Set with Depth 1.81 Inch
- MPN: VLSC3P2
- PPN: SCH-VLSC3P2
CAD
$73.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

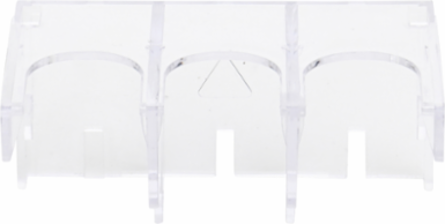

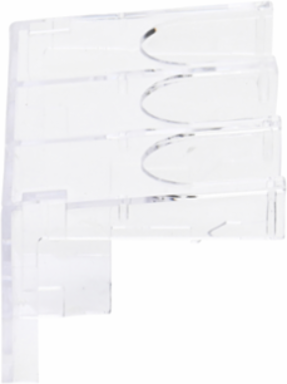

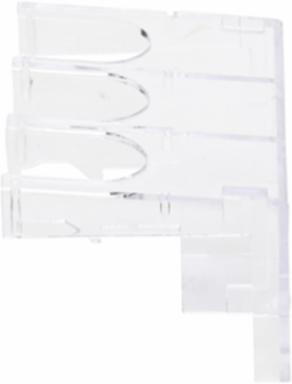

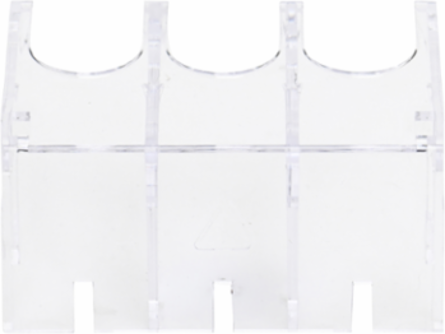

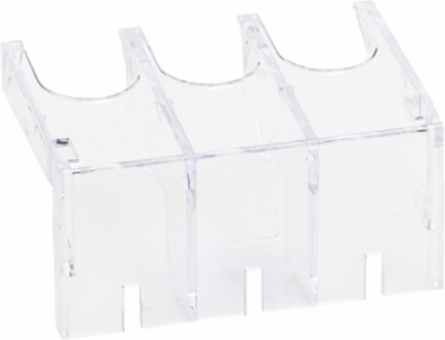

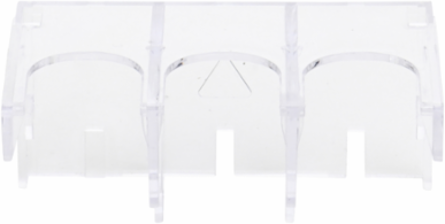

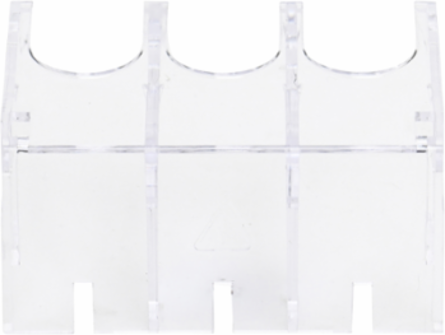

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This protective terminal cover is for the three poles of the main VLS disconnect switch. This protective cover can be added to a VLS3P032R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount disconnect switch. This protective cover can be added to a VLS3P032D2, VLS3P063D2, VLS3P080D2, VLS3P100D2 or VLS3P125D2 door mount disconnect switch. Each package has two of these terminal protective covers. This protective terminal cover is 1.46 inches tall, 2.76 inches wide and 1.81 inches deep. The switch weighs 0.07 lbs. This protective cover is cULus Listed and meets IEC 60947-3 requirements.
Features
- Designed specifically for 3-pole configurations, this terminal cover completely encloses all three phase connections on the switch body. It provides a reliable physical barrier that blocks accidental finger or tool contact with live components, significantly lowering the risk of electrical shock and hazardous flashovers during routine control panel adjustments.
- This accessory delivers broad range compatibility, fitting perfectly onto Schneider Electric TeSys VLS series disconnect switches rated from 30A up to 125A. It seamlessly integrates with both DIN rail mount (R2) and door-mounted (D2) switch bodies, providing an exact mechanical fit that eliminates the hassle of ordering different parts for various switch sizes.
- Featuring a convenient snap-on architecture, this terminal cover clips directly onto the disconnect switch body without requiring any mounting hardware or specialized tools. This simple installation design allows industrial panel builders and field electricians to secure terminations in seconds, speeding up project turnaround times and streamlining maintenance workflows.
- hipped as a set of two individual covers, this package provides complete protection for a single 3-pole disconnect device. By shielding both the incoming line side and outgoing load side terminal blocks simultaneously, it ensures full compliance with rigid electrical safety codes regarding exposed live distribution components.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy, United States
Depth46 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Traceability
- No
- Weee Scope
- Out
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3P
- Product Or Component Type
- terminal cover
- Range
- TeSys
- Sustainable Packaging
- No
- Width Nominal
- 70 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2026-06-27
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1943
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Short NameVLSC
Fixing Modeclipped
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 2
ReturnabilityYes
Height Nominal37 mm
Accessory / Separate Part Categoryprotection accessory
Package Weight(Lbs)29.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- terminal cover
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
