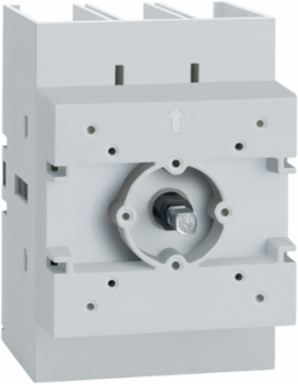

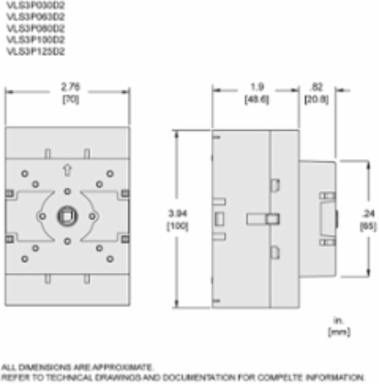

Schneider Electric VLS3P063D2 TeSys VLS Disconnect Switch 60A 40HP 3Pole Door Mount
- MPN: VLS3P063D2
- PPN: SCH-VLS3P063D2
CAD
$307.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys VLS Disconnect Switch 60A 40HP 3Pole Door Mount
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Italy, United States
Depth100 mm
Physical Attributes
- Color
- Gray
Complementary Attributes
- Maximum Horse Power Rating
- 20 hp 200/208 V AC, 20 hp 240 V AC40 hp 480 V AC, 40 hp 600 V AC3 hp 120 V AC, 7.5 hp 240 V AC
Rated Operational Power In W30 kW 400 V AC-23A)45 kW 500 V AC-23A), 45 kW 690 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
- [Ie] Rated Operational Current
- 63 A AC-22A Ue: 500 V, 63 A AC-22A Ue: 690 V63 A AC-23A Ue: 500 V, 60 A Ue: 600 V UL98, 63 A AC-21A Ue: 400 V, 63 A AC-21A Ue: 500 V, 63 A AC-21A Ue: 690 V, 63 A AC-22A Ue: 400 V, 63 A AC-23A Ue: 400 V, 47 A AC-23A Ue: 690 V
- Connections - Terminals
- power circuit screw clamp terminals 50-50 mm² solid, power circuit screw clamp terminals 70-70 mm² flexible - without cable end
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- VLS
- Device Short Name
- VLS3P
- Energy Efficiency Optimized
- False
- Intermittent Duty Class
- class 120 - 60 %
- Mechanical Durability
- 30000 cycles
- Network Frequency
- 50/60 Hz
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- switch body
- Returnability
- Yes
- Tightening Torque
- power circuit 5-6 N.m screw clamp terminals
- Height Nominal
- 70 mm
- [Icm] Rated Short-circuit Making Capacity
- 3550 A 690 V
- [Ith] Conventional Free Air Thermal Current
- 63 A (at 55 °C)
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencycULus, GL
[Ue] Rated Operational Voltage600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg Gauge12 AWG...1 AWG copper
Contacts Type And Composition3 NO
Electrical Durability30000 cycles AC-21
Fire Resistance960 °C IEC 60695-2-11
Making Capacity630 A 690 V AC-23A94.5 A 690 V AC-21A189 A 690 V AC-22A
Mounting Supportdoor
Network TypeAC
Performance Levelhigh performance
Product NameTeSys VARIO LS
RangeTeSys
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal70 mm
[Icw] Rated Short-time Withstand Current2500 A 690 V 1 s
[Ithe] Conventional Enclosed Thermal Current63 A
Rated Conditional Short-circuit Current50 kA 400 V 63 A gG
Package Weight(Lbs)434.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Compatibility
- fuse J 60 A maximum: 50 kA at 600 V ACfuse T 60 A maximum: 50 kA at 600 V ACcircuit-breaker 150 A maximum: 100 kA at 480 V AC, fuse CC 200 A maximum: 100 kA at 480 V AC, fuse J 200 A maximum: 100 kA at 480 V AC, fuse T 200 A maximum: 100 kA at 480 V AC, fuse CC 60 A maximum: 50 kA at 600 V AC
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- switch body
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
