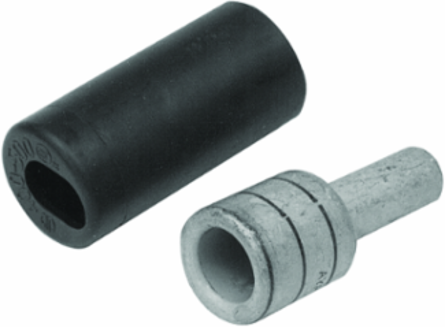

Burndy YEV28P46X92FX Copper Pin Terminal Adapter 4/0 AWG, 3.28 Inch Length, 35 kV Rated
- MPN: YEV28P46X92FX
- UPC: 781810037492
- PPN: BUR-381071
CAD
$118.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Adaptor Plug, 4/0 Str(550/#24)DLO Flex, 4/0 AWG(Code), 200(Navy), 3.28" L, Purple, 15 Index, 4/0 Pin Size, For Cu Cond.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 2 in |
|---|---|
| Dimension - Inside Diameter inch | 0.63 in |
| Dimension - Length Overall inch | 3.28 in |
| Dimension - P inch | 0.92 in |
| Equivalent Cross Pin Size | 0.46 in. - 4/0 AWG |
| Dimension - B Length inch | 1.99 in |
|---|---|
| Dimension - L Length Overall mm | 83 mm |
| Dimension - Outside Diameter inch | 0.77 in |
| Dimension - Strip Length inch | 2-1/16 |
| Equivalent Pin Size | 4/0 AWG |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | No |
Conductor Related
| Conductor - Copper DLO Size | 4/0 (550/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 4/0 AWG |
| Conductor - Copper Flex H Size | 4/0 AWG |
| Conductor - Copper Flex I Size | 4/0 AWG |
| Conductor - Copper Flex K Size | 4/0 AWG |
| Conductor - Copper Flex M Size | 4/0 AWG |
| Conductor - Copper Str Size | 4/0 AWG |
| Conductor - Copper DLO Size Range | 4/0 (550/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 4/0 AWG |
| Conductor - Copper Flex H Size Range | 4/0 AWG |
| Conductor - Copper Flex I Size Range | 4/0 AWG |
| Conductor - Copper Flex K Size Range | 4/0 AWG |
| Conductor - Copper Flex M Size Range | 4/0 AWG |
| Conductor - Copper Str Size Range | 4/0 AWG |
General
| Application | For Copper Conductors |
|---|---|
| Connector Type | Pin Terminal |
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Plating Type | Tin - Electro Plated |
| Temperature Rating | 194 |
| Type | Copper Pin Adapters |
| UPC 12 Digit | 7818100374922 |
| Color Code | Purple |
|---|---|
| Die Index | 15 |
| Insulation | Y |
| Plated | Y |
| Sub Brand | HYPLUG |
| Trade Name | HYPLUG™ |
| UPC | 781810037492 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
