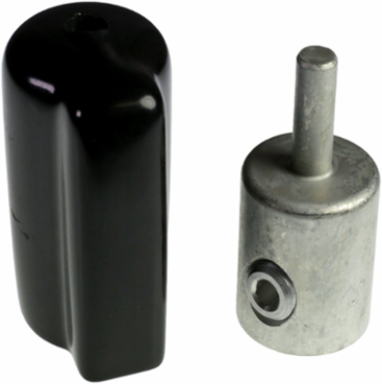

Burndy KAP1/0 1/0 AWG Aluminum Mechanical Pin Adaptor, 600 Volt Rated, 3.39 lb, 2.01 x 1.12 x 1.43 Inch
- MPN: KAP1/0
- UPC: 621945493322
- PPN: BUR-50076484
- UNSPSC: 39121427
CAD
$73.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wire Range #6-1/0 AWG, Dual Rated, 600 V, Mechanical Straight Pin Adaptor
Features
- AL9CU Dual Rated for both copper an aluminum conductor
- Listed to UL Wire Connector Standard UL486A-486B
- Rated for use with Fine Strand Conductor
- 600 Volt Rated
- Range Taking conductor port
- Plastisol insulated covers provided with each connector
Specifications
Additional
- Amperage Rating
- 170 A
- Torque
- 100 in-lb
- Size / Dimensions
- 2.01 in x 1.12 in x 1.43 in
- Outside Diameter
- 1.00 in
- Hex Key Size
- 1/4 in
- Compliance
- UL486A-486B
Voltage600 V
Wire Range6 AWG - 1/0 AWG
Strip Length0.97 in
Connector TypeCenter Formed Adapter
MaterialAluminum
Country of OriginUS
