Schneider Electric 170AAI52040 Modicon Momentum 4-Channel Differential Analog Input, 141.5mm Width
- MPN: 170AAI52040
- PPN: SCH-170AAI52040
CAD
$2765.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

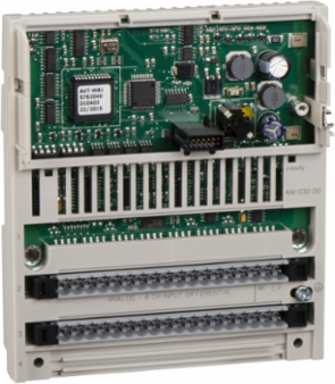

This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 4 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±100mV, ±25mV. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Modicon Momentum automation platform
- Thermocouple Type
- thermocouple E || thermocouple S || thermocouple K || thermocouple N || thermocouple B || thermocouple R || thermocouple J || thermocouple T
- Product Or Component Type
- analogue input base
Analogue Input Range+/- 100 mV 15 bits + sign > 10000 kOhm || +/- 25 mV 15 bits + sign > 10000 kOhm
Analogue Input Typedifferential
Analogue Input Number4
Complementary
- Electrical Connection
- 2 connectors for removable terminal blocks
- Isolation Between Channels And Ground
- 500 V AC for 1 minute
- Data Format
- full 16 bits signed
- External Power Requirement
- +/- 30 V DC
- Net Weight
- 0.215 kg
- Maximum Power Dissipation In W
- 5.5 W
- Permissible Common Mode Voltage
- 100 V DC between channels to ground || 115 V AC single or three phases between channels || 200 V DC between channels || 250 V AC between channels to ground || 250 V AC single phase between channels
- Local Signalling
- channel status 4 LEDs
- Common Mode Rejection
- 120 dB DC between channels || 130 dB 50 Hz AC between channels || 135 dB DC between channels to ground || 140 dB 60 Hz AC between channels || 145 dB 50 Hz AC between channels to ground || 155 dB 60 Hz AC between channels to ground
- Width
- 141.5 mm
- Protection Type
- internal 2 A slow-blow
- Isolation Between Supply And Ground
- 500 V for 1 minute
Height125 mm
Current Consumption305 mA 24 V DC
MarkingCE
Associated Fuse Rating500 mA, fast blow
Isolation Between Channels400 V DC
Serial Mode Rejection35 dB 50 Hz AC || 45 dB 60 Hz AC
Absolute Accuracy Error+/- 21 µV 25 °C +/- 25 mV || +/- 27 µV 25 °C +/- 100 mV || +/- 46 µV 60 °C +/- 25 mV || +/- 94 µV 60 °C +/- 100 mV
Temperature Probe TypeNi 100 0.125 mA +/- 25 mV || Ni 1000 0.125 mA +/- 100 mV || Pt 100 0.125 mA +/- 25 mV || Pt 1000 0.125 mA +/- 100 mV
Update Time500 ms
Depth47.5 mm
Reverse Polarity Protectioninternal
Environment
- Product Certifications
- FM Class 1 Division 2 || CSA || UL
- Resistance To Electromagnetic Fields
- 10 V/m 80...1000 MHz IEC 801-3
- Relative Humidity
- 95-95 % without condensation
- Protective Treatment
- TC
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-85 °C
Resistance To Electrostatic Discharge4 kV contact IEC 801-2 || 8 kV on air IEC 801-2
Operating Altitude<= 5000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1403005EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1403005EN
