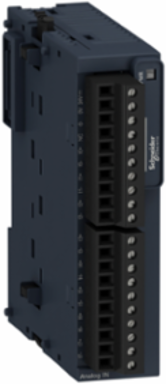

Schneider Electric TM3TI8T Modicon TM3 Analog Input Module, 8 Input Channels, 24V DC, IP20
Schneider Electric TM3TI8T Modicon TM3 Analog Input Module, 8 Input Channels, 24V DC, IP20
- MPN: TM3TI8T
- PPN: SCH-TM3TI8T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$444.00/ EA
Description
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 16bit and 15bit + sign resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 30mA at 24V DC via external supply, 45mA/40mA at 5V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with pitch 3.81mm adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Specifications
Specifications
- Range Of Product
- Modicon TM3
- Analogue Input Number
- 8
- Analogue Input Type
- thermocouple - 200...1000 °C thermocouple J || thermocouple - 200...1300 °C thermocouple K || thermocouple 0...1760 °C thermocouple R || thermocouple 0...1760 °C thermocouple S || thermocouple 0...1820 °C thermocouple B || thermocouple - 200...400 °C thermocouple T || thermocouple - 200...1300 °C thermocouple N || thermocouple - 200...800 °C thermocouple E || thermocouple 0...2315 °C thermocouple C || NTC 10k thermistor -90...150 °C || PTC thermistor 100...10000 Ohm || thermocouple - 200...1000 °C
Product Or Component Typeanalog input module
Range CompatibilityModicon M221 || Modicon M241 || Modicon M251 || Modicon M262
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1402009EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1402009EN
Environment
- Product Certifications
- CE || UKCA || RCM || EAC || cULus || cULus HazLoc
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3 || 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3 || 1 V/m 2 GHz...3 GHz IEC 61000-4-3
- Immunity To Microbreaks
- 10 ms
- Storage Altitude
- 0-3000 m
- Shock Resistance
- 15 gn 11 ms
- Vibration Resistance
- 3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail
- Relative Humidity
- 10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...2000 m
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
StandardsIEC 61131-2
Ambient Air Temperature For Operation-10-55 °C horizontal installation || -10-35 °C vertical installation
Pollution Degree2
Resistance To Magnetic Fields30 A/m IEC 61000-4-8
Ambient Air Temperature For Storage-25-70 °C
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2 || 4 kV on contact IEC 61000-4-2
Resistance To Fast Transients1 kV IEC 61000-4-4 I/O)
Electromagnetic Emissionradiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 55011
Complementary
- Electrical Connection
- 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs and supply || 10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs
- Input Impedance
- >= 1 MOhm thermocouple || >= 1 MOhm temperature probe || >= 1 MOhm thermistor
- Non-Linearity
- +/- 0.2 %FS
- Marking
- CE
- Net Weight
- 0.11 kg
- Current Consumption
- 30 mA 24 V DC via external supply || 45 mA 5 V DC via bus connector || 40 mA 5 V DC via bus connector
- Temperature Drift
- +/- 0.01 %FS/°C
- Mounting Support
- top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
- Surge Withstand
- 1 kV power supply common mode IEC 61000-4-5 || 0.5 kV power supply differential mode IEC 61000-4-5 || 1 kV input common mode IEC 61000-4-5
- Width
- 23.6 mm
- [Us] Rated Supply Voltage
- 24 V DC
- Sampling Duration
- 100 ms
Height90 mm
Type Of Cabletwisted shielded pairs cable <30 m input
Lsb Value0.1 °C thermocouple || 0.1 °C NTC || 1 Ohm PTC/NTC
Analogue Input Resolution16 bits || 15 bits + sign
Absolute Accuracy Error+/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C || +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C || +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C || +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C || +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C || +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C || +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C || +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C || +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C || +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C || +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C || +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C || +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C || +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C
Conversion Time100 ms + 100 ms per channel + 1 controller cycle time
Supply Voltage Limits20.4-28.8 V
Local SignallingPWR 1 LED green)
Cross Talk<= 1 LSB
Depth70 mm
Insulationbetween input and supply 1500 V AC || between input and internal logic 500 V AC
Repeat Accuracy+/-0.5 %FS
