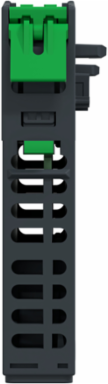

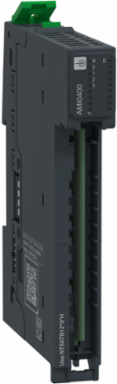

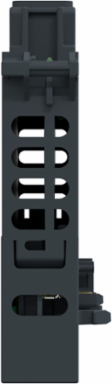

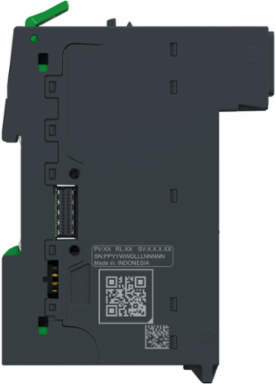

Schneider Electric NTSAMI0400K Analog Input Module + Base, 4 In, Current, Voltage, 2 Wires, Modicon Edge I/O NTS
- MPN: NTSAMI0400K
- PPN: SCH-NTSAMI0400K
CAD
$627.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

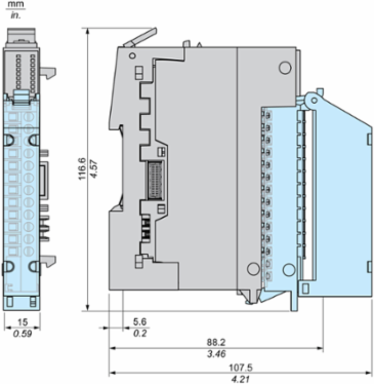

This analog input kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and an analog input module. It features 4 voltage current inputs, of type ±10V, 0 to 10V, ±5V, 0 to 5V, 1 to 5V, and ±20mA, 0 to 20mA, 4 to 20mA, with a 2-wire connection. This all-in-one solution is a comprehensive platform for managing multiple analog signals, ensuring efficient data processing. It functions within a temperature range of minus 20 to 60 degrees Celsius. It has an IP protection rating of IP20. It measures 116mm high, 15mm wide, 88mm deep and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Indonesia, Philippines, United States |
|---|
| Depth | 80 mm |
|---|
Physical Attributes
| Housing Color | grey |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | shielded cable <200 m voltage inputsshielded cable <1000 m current input |
|---|
| Rated Operational Voltage Limits | 20.4...28.8 V DC |
|---|
Important Information Attributes
| Environmental Characteristic | standard environment, standard environment |
|---|---|
| Lsb Value | 0.31 mV, +/- 10 V, 0.31 mV, 0...10 V0.16 mV, +/- 5 V, 0.16 mV, 0...5 V0.13 mV, 1...5 V0.61 µA, +/- 20 mA, 0.61 µA, 0...2 mA0.49 µA, 4...20 mA |
| Measurement Error | <= 0.3 % FS 25 °C, <= 0.3 % FS 25 °C, <= 0.5 % FS - 20…60 °C, <= 0.5 % FS - 20…60 °C<= 0.3 % FS 25 °C, <= 0.3 % FS 25 °C, <= 0.5 % FS - 20…60 °C, <= 0.5 % FS - 20…60 °C |
| Power Supply Type | bus power from power supply bus (24 Vdc), field power from power supply field (24 Vdc) |
| Non-linearity | <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current, <= 0.01 % FS voltage/current |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.21933873510256938, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 6 kg CO2 eq., 5.615929856774683 |
| Local Data Status | Publishable |
| Pre Comm Date | 2024-12-19 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2410004EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2439 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Common Mode Rejection | 90 dB |
| Hot Swapping Fallback | yes |
| Isolation Between Channels And Field Pwr | No |
| Local Signalling | 1 LED green module operating (RUN)1 LED per channel green channel diagnostic1 LED red module error (ERR) |
| Operating Mode | Isochronous/Asynchronous |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon Edge I/O NTS |
| Sampling Duration | 0.980 ms per module |
| Software Version | v6.1 |
| Temperature Drift | ± 0.0057 % FS/ °C± 0.0057 % FS/ °C |
| Type Of Cable | shielded cable |
| Vibration Resistance | 1 g without accessory2 g with accessory |
| Analogue Input Type 9 Analogue Input Type | voltage |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To receive and process digital input signals from sensors in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC). |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Indonesia, ID |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Height Nominal | 100 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
| Kit Composition | NTSAMI0400 module, NTSXBA0100H base |
|---|---|
| Marking | CE, UKCA, cULus, RCM |
| Mounting Support | top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715 |
| Certificate Agency | CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending) |
| Carbon Footprint Of The Distribution Phase [A4] | 0.11342234809860938, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.00017573016570754922 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 18 kg CO2 eq., 17.78575601290216 |
| Local Publishable Date | 2026-01-12 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Device Application | Industrial Application |
| Isolation Between Channels And Bus | 1500 V AC |
| Isolation Between Field Power And Bus | 1500 V AC |
| Mandatory Accessory | NTSXTB12_0_H terminal block |
| Power Dissipation In W | 1.6 W maximum at 24 V DC |
| Product Or Component Type | analog input module kit |
| Returnability | Yes |
| Shock Resistance | 15 g 11 ms with and without accessory) |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 24 kg CO2 eq. |
| Typical Current Consumption | 31.7 mA 24 V DC on the Bus current19.2 mA 24 V DC on the internal field current minimum23 mA 24 V DC on the internal field current maximum |
| Housing Color | grey |
| Pep Code | ENVPEP2410004EN |
| Pep Verification Date | 2024-10-08 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Width Nominal | 15 mm |
| Package Weight(Lbs) | 99.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -20-60 °C-20-60 °C |
| Circularity Profile | ENVEOLI2410004EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m)2000...5000 m with derating |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2410004EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 23.734622683043725 |
| Ambient Air Temperature For Storage | -40-85 °C-40-85 °C |
| Environmental Disclosure | ENVPEP2410004EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Product Compatibility | NTSN..... |
| Relative Humidity | 5-95 % without condensation |
| Pep Verification Date | 2024-10-08 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | analog input module kit |
|---|
| Range Of Product | Modicon Edge I/O NTS |
|---|
ETIM
| ETIM 8 | EC001596 |
|---|
| ETIM 9 | EC001596 |
|---|
Input Attributes
| Analogue Input Type | current +/- 20 mA, current 0...20 mA, current 4...20 mAvoltage +/- 10 V, voltage 0...10 V, voltage +/- 5 V, voltage 0...5 V, voltage 1...5 V |
|---|---|
| Input Impedance | > 10 MOhm in voltage mode, > 10 MOhm in voltage mode> 10 MOhm in voltage mode, > 10 MOhm in voltage mode100 Ohm + internal current protector 10 Ohm typical |
| Permitted Overload On Inputs | 30 V maximum voltage, 30 V at 50 mA maximum current |
| Analogue Input Resolution | 15 bits + sign |
| Input Diagnostic | underflow error per channel, overflow error per channel, Broken wire error per channel, Hardware error per channel |
|---|---|
| Input Protection Type | over current / miswiring protection per channel for current input, over voltage / miswiring protection per channel for voltage input |
| Analogue Input Number | 4 |

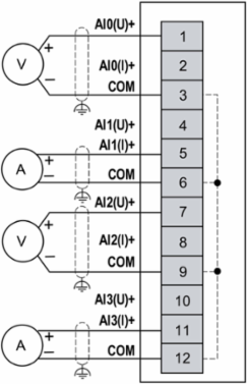

| Input Wiring Mode | 2 wires |
