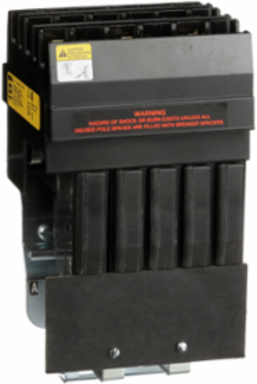

Square D HQO206AC QO Distribution Panel, 240V, 30A, 2 Pole, 25 kA Breaking Capacity

MPN: HQO206AC
UPC: 785901649595
PPN: SCH-HQO206AC
UNSPSC: 39121601

$591.43

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

I-Line power distribution panelboards are ideal for service entrance equipment or downstream distribution panels in the electrical system of a large commercial or industrial facility. The I-Line power distribution panelboard has a circuit breaker engagement system and is used to feed NQ and NF panelboards. I-Line panelboards are capable of feeding large motor loads and are utilized in most every market segment. This QO distribution panel only mounts in HCM, HCP, HCP-SU or HCR-U I-Line panelboards. This QO distribution will accept up to six 30A single pole QO circuit breakers. This panel has a 240 VAC maximum rating. Panel provides 25 kA breaking capacity. It has an AC phase connection. The panel will accept 14 AWG or 12 AWG copper or aluminum wire.

Features

QO Distribution panel used in I-Line panelboards.
240 VAC Max
Mounts in Type HCM, HCP, HCP-SU, or HCR-U
Designed to satisfy individual requirements
Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States

Weight	1882 g

Complementary Attributes

Line Rated Current	30 A

Ue Rated Operational Voltage	120/240 V AC

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	2 kg CO2 eq., 1.7788699233650764
Carbon Footprint Of The Manufacturing Phase A1 To A3	12 kg CO2 eq., 12.199482200516435
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2534
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	14 AWG...12 AWG aluminium/copper
Device Composition	grounding bar (ordered separately)
Mounting Mode	plug-on
Number Of Spaces	6
Phase Connection	AC
Product Or Component Type	panel
Returnability	Yes
Sustainable Packaging	No
Database Version	2026-04
Nbr. Of Units In Pkg.	1
Short Circuit Current	25 kA
Functional Unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd in the Household and Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	32

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	1.265044758437376, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.2517359401047146, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	3 kg CO2 eq., 2.8879381591402447
Local Publishable Date	2026-09-28
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Circuit Breaker Type	QO
Energy Efficiency Optimized	False
Number Of Circuits	6
Phase	1 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	QO
Software Version	v6.3.2
Total Lifecycle Carbon Footprint	0 kg CO2 eq.
Data Source	extrapolated product
Customs Code	8538100000
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Toxic Heavy Metal Free	Yes
Carbon Footprint	0
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2111016EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Operation	-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2111016EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
