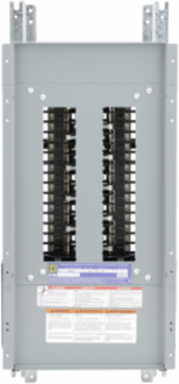

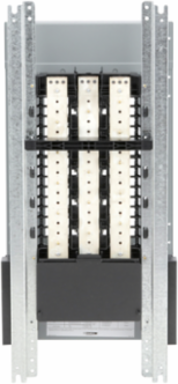

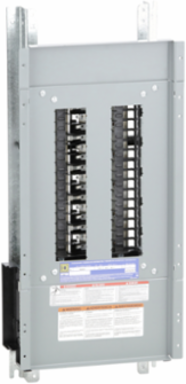

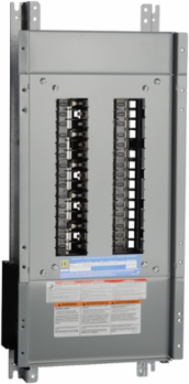

Square D NQ430L2C Panelboard 225A 30 Pole 3 Phase 240V AC Copper Bus 5.75 Inch Depth

MPN: NQ430L2C
UPC: 785901507772
PPN: SCH-NQ430L2C
UNSPSC: 39121112

$850.09

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-on branch circuit breakers, integral main circuit breakers, branch mounted SPDs, and a wide variety of ready to install accessory kits. The interiors are field convertible to support top or bottom feed. This main lugs interior is rated 225A for 240VAC and 48VDC, has a plated copper bus, and 30 pole spaces. NQ Panelboards are convertible from main lugs to main circuit breaker. NQ Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NQ Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NQ panelboard interior is UL listed for applications in the USA and Canada. Interior accepts QOB, QOBVH and QHB bolt-on and QO, QOVH and QH plug-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. NQ Panelboard interiors are available with plated aluminum or copper bus. 100A branch circuit breakers may be installed on both sides of NQ Panelboard interiors.

Features

This Square D NQ panelboard interior features a robust 225A main current rating and handles up to 240VAC (as well as 48VDC), making it the perfect solution for heavy-duty commercial lighting and power distribution systems. The high ampacity provides plenty of headroom for facility expansions without triggering premature overcurrent protection faults.
Engineered with a copper bus, this interior ensures maximum electrical conductivity and minimal heat generation under sustained maximum loads. By choosing a solid copper bus over aluminum alternatives, industrial contractors gain superior oxidation resistance and long-term connection reliability in high-demand environments.
Equipped with 30 distinct pole spaces, this 3-phase, 4-wire subpanel provides an optimized circuit density for medium-sized infrastructure footprints. The structured 30-circuit configuration allows industrial electricians to cleanly balance phase loads while maintaining enough isolated paths for dedicated equipment runs.
This NQ interior natively accepts Square D bolt-on QOB, QOB-VH, and QHB branch circuit breakers, ensuring a secure, vibration-resistant connection that completely eliminates the arcing issues common to standard plug-in alternatives. This absolute physical compatibility ensures your facility remains compliant with rigid safety codes during system upgrades or retrofits.
Built to drop seamlessly into a standard 20" wide by 32" high Square D NEMA 1 or NEMA 3R enclosure box, this system guarantees clean spatial alignment with standard commercial rough-ins. Standardized sizing drastically slashes manual labor times during a replacement or new installation, allowing easy routing for standard lines ranging from 6 AWG up to 350 kcmil aluminum or copper lugs.
Fully certified to both UL and CSA standards, this panelboard interior delivers a verified short-circuit current rating (SCCR) up to 100 kA when paired with matching upstream Square D components. This compliance ensures your installation smoothly passes stringent municipal inspections while protecting downstream office equipment from catastrophic electrical surges.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Weight	8323 g

Physical Attributes

Enclosure Nominal Height	32 in

Enclosure Nominal Width	20 in

Complementary Attributes

Iu Rated Interrupted Current	10 kA, 22 kA, 65 kA
Ue Rated Operational Voltage	240 V AC48 V DC

Line Rated Current	225 A

Important Information Attributes

Persona Type Ids	EU, EUA, LC, OM, SC
Circuit Breaker Type	QOB, QOB-VH, QHB
Connections Terminals	lug line 6 AWG...350 kcmil aluminium, lug neutral 6 AWG...350 kcmil aluminium
Carbon Footprint Of The Distribution Phase A4	2.3992318308, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.1066347542, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0 kg CO2 eq., 0.0254773433
Local Publishable Date	2026-03-26
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Load Center Type	main lugs
Number Of Spaces	30
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	10.44 in
Customs Code	8538100000
Functional Unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508.00 mm x 146.05 mm and NAME 1& 10- followed standard: UL 67 UL 50E and CSA22.2
Functional Unit Unit	unit
Recyclability Potential In %	91

Persona Type Names	End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Tightening Torque	4.52-5.65 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG), 11.3-11.3 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG)31.07-31.07 N.m 13.30-177.3 mm² (6 AWG...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (6 AWG...250 kcmil)31.07-31.07 N.m 107.2-152 mm² (4 AWG...300 kcmil)
Certificate Agency	UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	19 kg CO2 eq., 19.141108849
Carbon Footprint Of The Manufacturing Phase A1 To A3	56 kg CO2 eq., 55.8223010764
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2532
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Commercial
Energy Efficiency Optimized	False
Material	copper
Phase	3 phase 4 wires
Product Or Component Type	interiors
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	77 kg CO2 eq.
Database Version	2022-01
Height Nominal	27 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	77.4947538536
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-15
Psr Version	PSR-0005-ed2-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2303005EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2303005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
